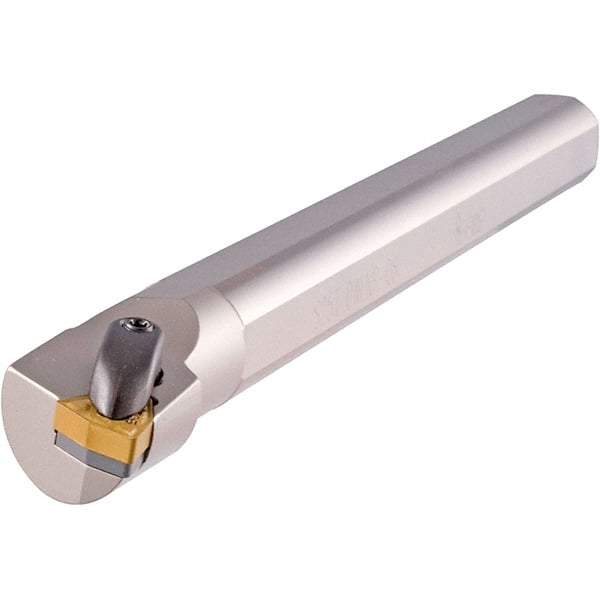

Iscar - 1.45" Min Bore Diam, 14" OAL, 1-1/4" Shank Diam, S-DWLN Indexable Boring Bar - 2.16" Max Bore Depth, WN.. 43.. Insert, Clamp Holding Method
Item #: 93377786
Brand: Iscar
Model #: 3602597
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-DWLN |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.4500 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.1600 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | WN.. 43.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.7600 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -10 |
| Complete Insert Compatibility | WNGA 431T-MC; WNGA 432-M3; WNGA 432T; WNMA 432; WNMG 431-GN; WNMG 431-NF; WNMG 431-PP; WNMG 431-TF; WNMG 431-VL; WNMG 432-M3M; WNMG 432-NR; WNMG 432-TNM; WNMG 432-WF; WNMG 432-WG; WNMM 432-NM; WNMZ 431-LF |
| Toolholder Material | Steel |
