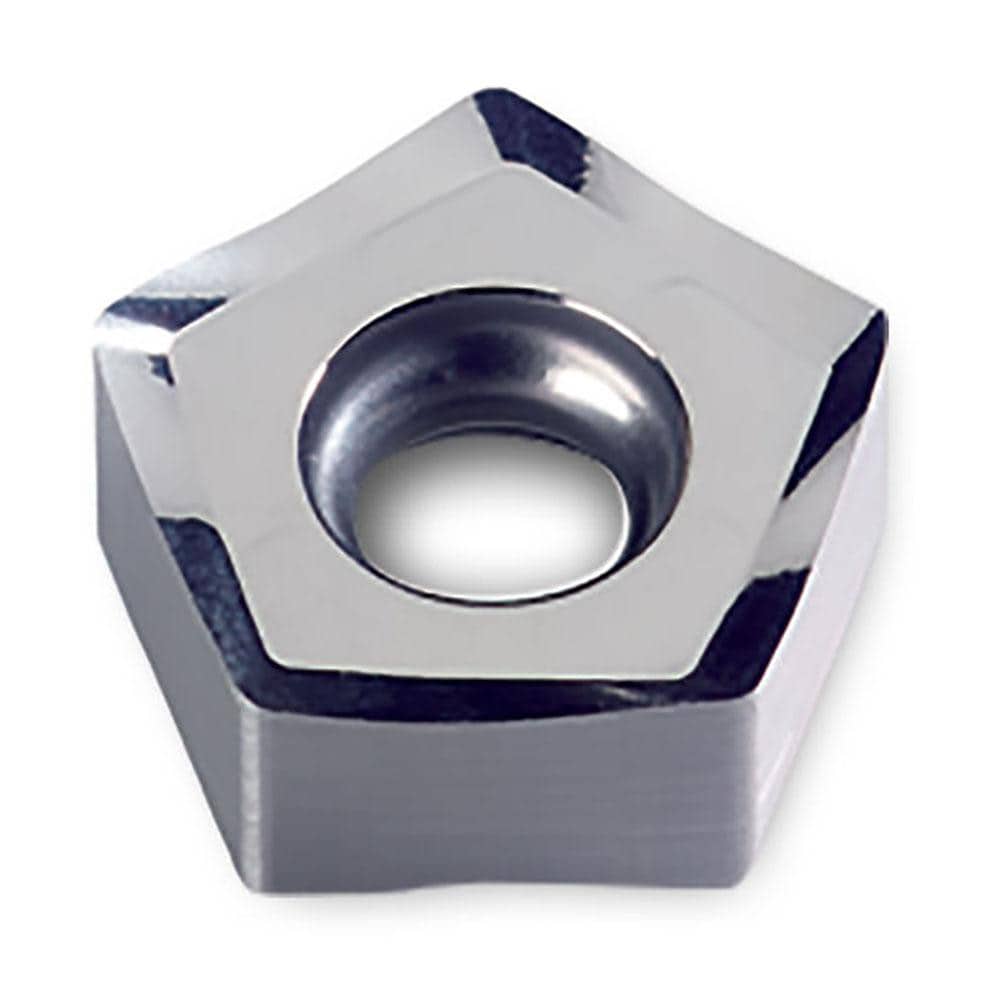

Milling Insert: PNCU0805GNFR-P IN05S IN05S, Solid Carbide
Item #: 79016515
Brand: Ingersoll Cutting Tools
Model #: 5812006
Product Specifications
| Insert Style | PNCU |
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Pentagon |
| Manufacturer Grade | IN05S |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Cutting Edges | 10 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2170 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 0.00 |
| Insert Size Code | 0805 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.4500 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | PNCU |
| Coating Process | Uncoated |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | PNCU0805GNFR-P S IN05S |
| Iso Code | PNCU0805GNFR-P IN05S |
| Standards | ISO; ANSI |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 5812006 |
| Cutter Series Compatibility | 4W2A; DM5G |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 108 |
| Width (Decimal Inch - 4 Decimals) | 0.4500 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4500 |
