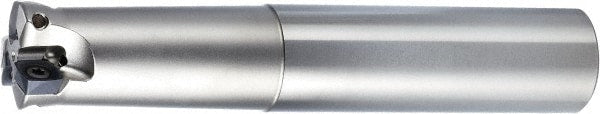

Indexable High-Feed End Mill: 1.25" Weldon Shank
Item #: 55702393
Brand: OSG
Model #: 7800939
Product Specifications
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 7.0870 |
| Toolholder Style | PHC |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Compatible Insert Style | SDMT09? |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 9.3660 |
| Head Length (Decimal Inch) | 9.3660 |
| Projection (Decimal Inch) | 9.3660 |
| Weldon Flat | Yes |
| Lead Angle | 10 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 7.0870 |
| Toolholder Style | PHC |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Compatible Insert Style | SDMT09? |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 9.3660 |
| Head Length (Decimal Inch) | 9.3660 |
| Projection (Decimal Inch) | 9.3660 |
| Weldon Flat | Yes |
| Lead Angle | 10 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| MSC Part # | 55702393 |
| Mfr Part # | 7800939 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
