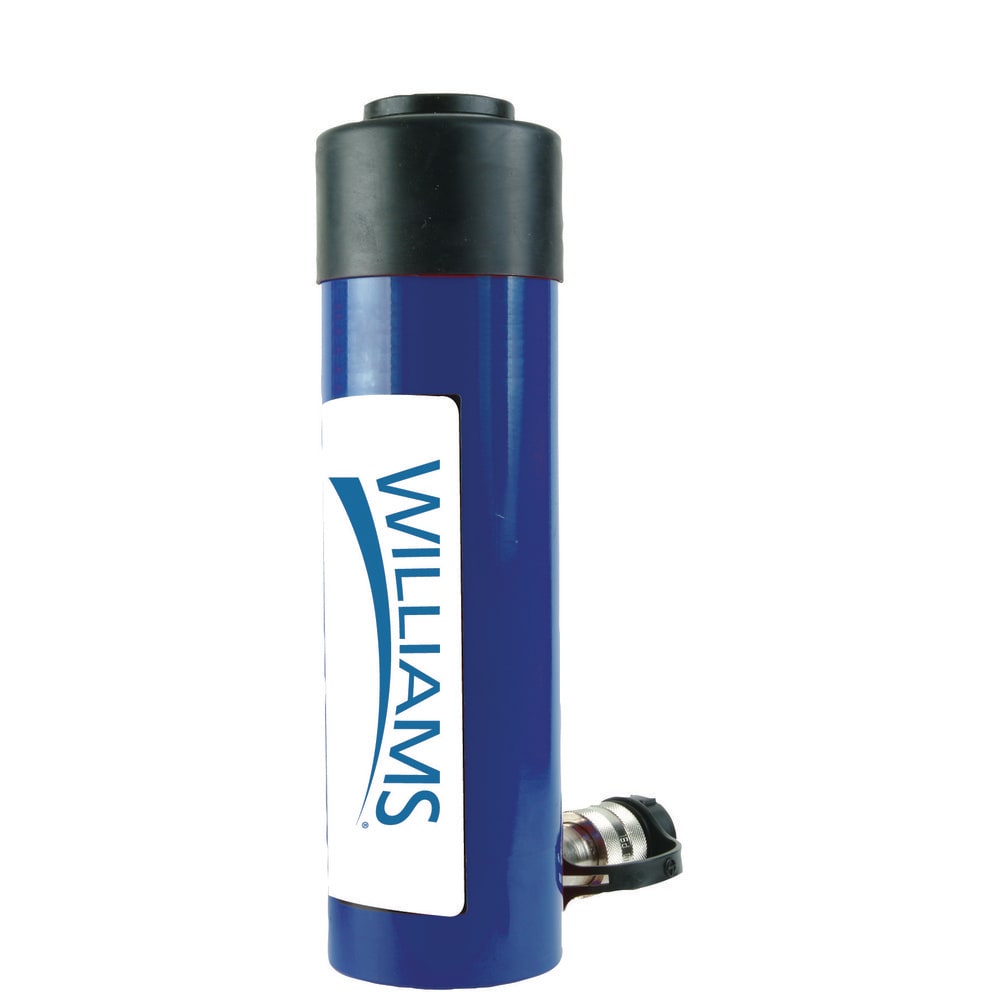

Portable Hydraulic Cylinders; Actuation: Double Acting; Load Capacity: 25 TON; Stroke Length: 9.96; Piston Stroke (Decimal Inch): 9.98; Oil Capacity: 51.19; Cylinder Effective Area: 5.14; Lowered Height: 14.88
Item #: 54375852
Brand: Williams
Model #: 6C25T10
Product Specifications
| Actuation | Double Acting |
| Load Capacity | 25 TON |
| Stroke Length | 9.96 |
| Piston Stroke (Decimal Inch) | 9.98 |
| Oil Capacity | 51.19 |
| Cylinder Effective Area | 5.14 |
| Lowered Height | 14.88 |
| Retracted Length | 14.80 |
| Extended Length | 24.76 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 3.35 |
| Rod Diameter | 2.56 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .64 |
| Saddle Diameter | 1.97 |
| Y Center Hole Diameter | 2.56 |
| Maximum Height (Inch) | 24.76 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
