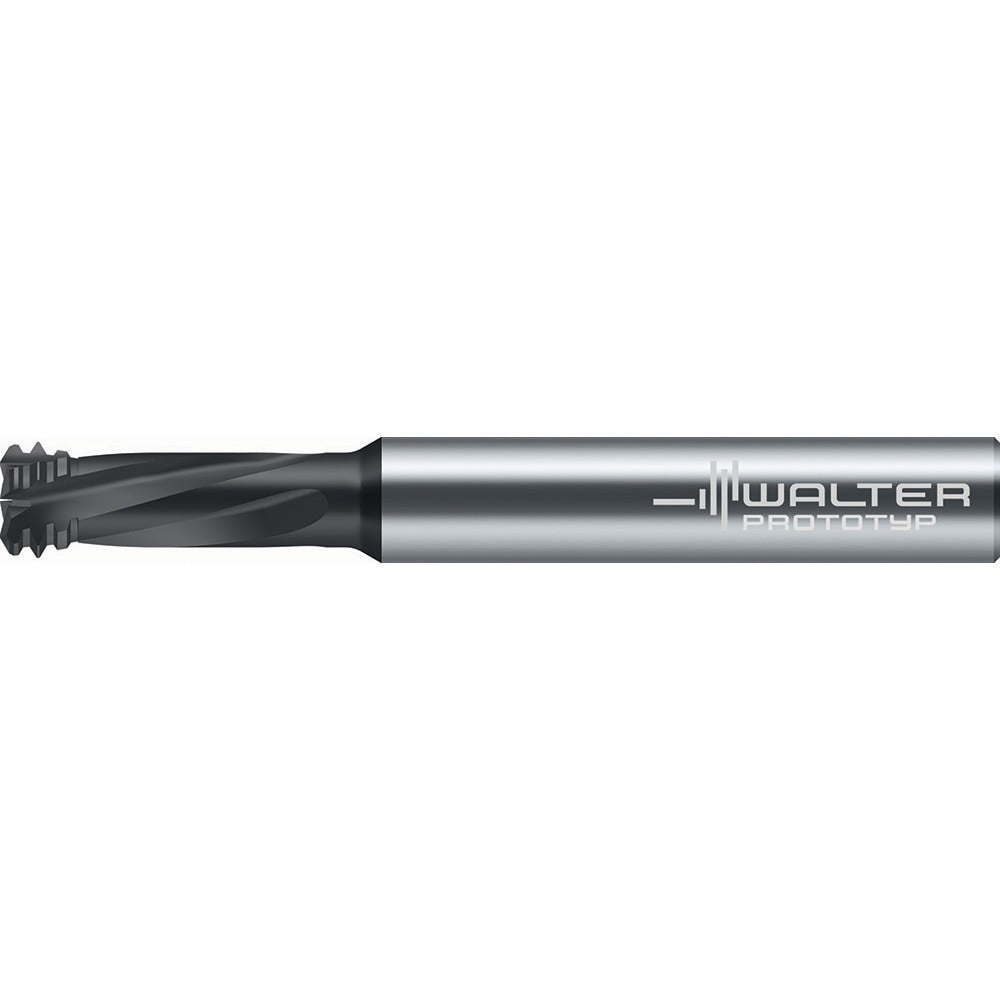

Helical Flute Thread Mill: M6x1, Internal, 4 Flute, 6.0000 mm Shank Dia, Solid Carbide
Item #: 56213358
Brand: Walter-Prototyp
Model #: 8378418
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M6x1 |
| Thread Type | Internal |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Cutting Diameter (mm) | 4.50 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1772 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1224 |
| Length of Cut (mm) | 3.1100 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 50.0000 |
| Overall Length (Decimal Inch) | 1.9685 |
| Thread Standard | Metric |
| Flute Direction | Left Hand |
| Series | TC645-M-A1D |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (mm) | M6x1 |
| Thread Type | Internal |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Cutting Diameter (mm) | 4.50 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1772 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1224 |
| Length of Cut (mm) | 3.1100 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 50.0000 |
| Overall Length (Decimal Inch) | 1.9685 |
| Thread Standard | Metric |
| Flute Direction | Left Hand |
| Series | TC645-M-A1D |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| MSC Part # | 56213358 |
| Mfr Part # | 8378418 |
| Country of Origin Country of Origin is subject to change | Germany |
