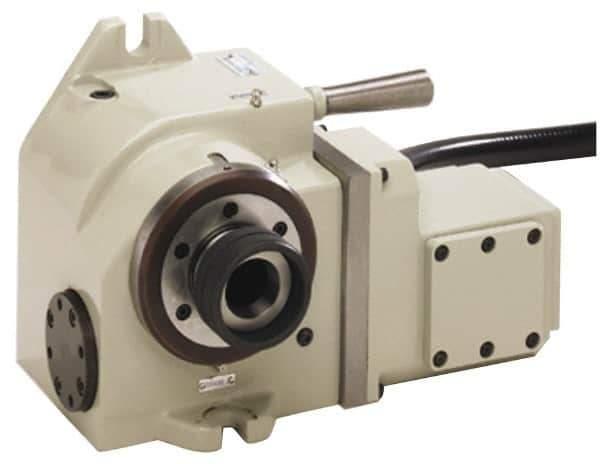

Yuasa - 1 Spindle, 100 Max RPM, 0.4 hp, Horizontal & Vertical CNC Collet Rotary Indexer - 20 kg (44 Lb) Max Horiz Load, 109.98mm Centerline Height
Item #: 93016236
Brand: Yuasa
Model #: DMNC-5C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Indexer Type | Collet Indexer |
| Number of Spindles | 1 |
| Collet Compatibility | 5C |
| Maximum RPM | 100 |
| Setting Position | Horizontal; Vertical |
| Maximum Horizontal Load Capacity (Lb.) | 44 |
| Maximum Horizontal Load Capacity (kg) | 20 |
| Maximum Vertical Load Capacity (Lb.) | 22 |
| Maximum Vertical Load Capacity (kg) | 10 |
| Centerline Height (mm) | 109.98 |
| Centerline Height (Decimal Inch) | 4.3300 |
| Through Hole Size (mm) | 28.30 |
| Through Hole Size (Decimal Inch) | 1.1140 |
| Table Torque (Ft/Lb) | 90.00 |
| Table Torque (kg-m) | 12.44 |
| Resolution (Decimal Inch) | 0.0010 |
| Positioning Accuracy (sec.) | 20.00 |
| Repeatability (sec.) | 2.00 |
| Gear Ratio | 45:1 |
| Spindle Runout (mm) | 0.01 |
| Spindle Runout (Decimal Inch) | 0.000400 |
| Motor Type | AC Servo |
| Voltage | 105 to 240 |
| Horsepower (HP) | 0.40 |
| For Use With | CNC 4-Axis Rotary Table |
| Includes | Home Limit Switch; Locating Keys; Manual 5C Collet Closer; Operators' Manual; Power Supply; Remote Cable; UDNC-M1 Controller; Warranty Card |
