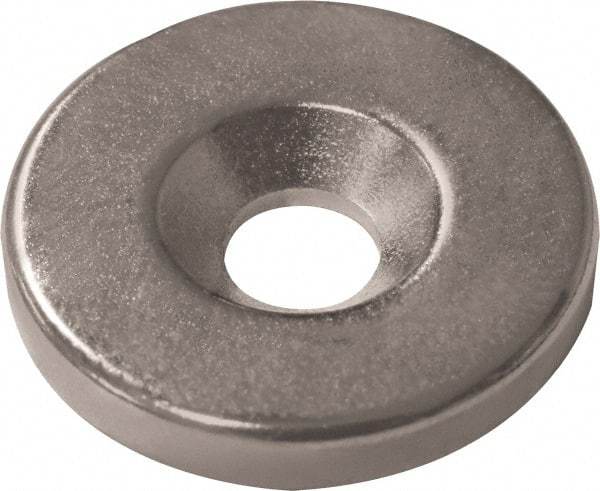

Mag-Mate - 3/4" Long x 3/4" Diam x 1/8" High, 1 Mounting Hole, 12 Poles, Ring Neodymium Rare Earth Holding Magnet - 8 Lb Average & 16 Lb Max Pull Force, M6 Mounting Hole, Countersunk Hole Style, 180°F Max Operating Temp
Item #: 92673771
Brand: Mag-Mate
Model #: CMP7512CSP2N42
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Magnet Shape | Ring |
| Rare Earth Metal Type | Neodymium Rare Earth |
| Overall Length (Inch) | 3/4 |
| Overall Width/Diameter (Inch) | 3/4 |
| Overall Width/Diameter (Decimal Inch) | 0.7500 |
| Height (Inch) | 1/8 |
| Average Pull Force (Lb.) | 8.00 |
| Maximum Pull Force (Lb.) | 16.00 |
| Number of Poles | 12 |
| Number of Mounting Holes | 1 |
| Mounting Hole Style | Counter Sunk Hole |
| Mounting Hole Size | M6 |
| Insulation Material | None |
| Maximum Operating Temperature (F) | 180.00 |
| Maximum Operating Temperature (C) | 82.00 |
