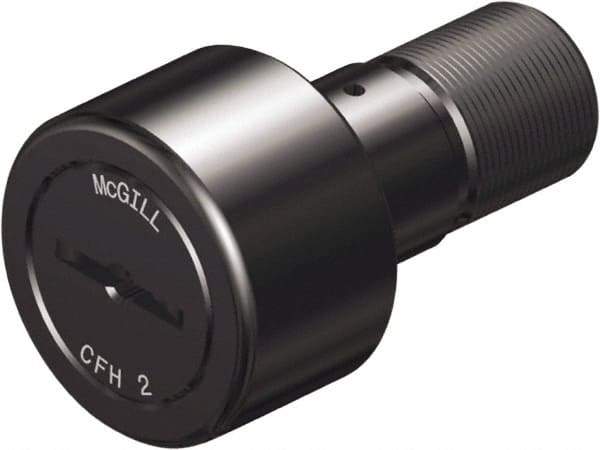

McGill - 5/8" Roller Diam x 7/16" Width, 1/4" Stud Diam x 3/4" Length, Heavy Stud Cam Follower - Steel, 5/16" Thread Length, 5/16-24 Thread, 1.22" OAL, 955 Lb Dynamic Cap, 2,480 Lb Static Cap
Item #: 92611417
Brand: McGill
Model #: CFH 5/8
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Heavy Stud Cam Follower |
| Roller Diameter (Decimal Inch) | 0.6250 |
| Roller Diameter (Inch) | 5/8 |
| Roller Width (Decimal Inch) | 0.4375 |
| Roller Width (Inch) | 7/16 |
| Stud Diameter (Decimal Inch) | 0.3125 |
| Dynamic Load Capacity (Lb.) | 955 |
| Dynamic Load Capacity (N) | 4248 |
| Static Load Capacity (Pounds) | 2480.00 |
| Static Load Capacity | 11031 |
| Length (Decimal Inch) | 1.220 |
| Thread Size | 5/16-24 |
| Material | Steel |
| Stud Length (Decimal Inch) | 0.7500 |
| Stud Length (Inch) | 3/4 |
| Thread Length (Inch) | 5/16 |
| McGill Part Number | CFH 5/8 |
| Roller Type | Needle Roller |
