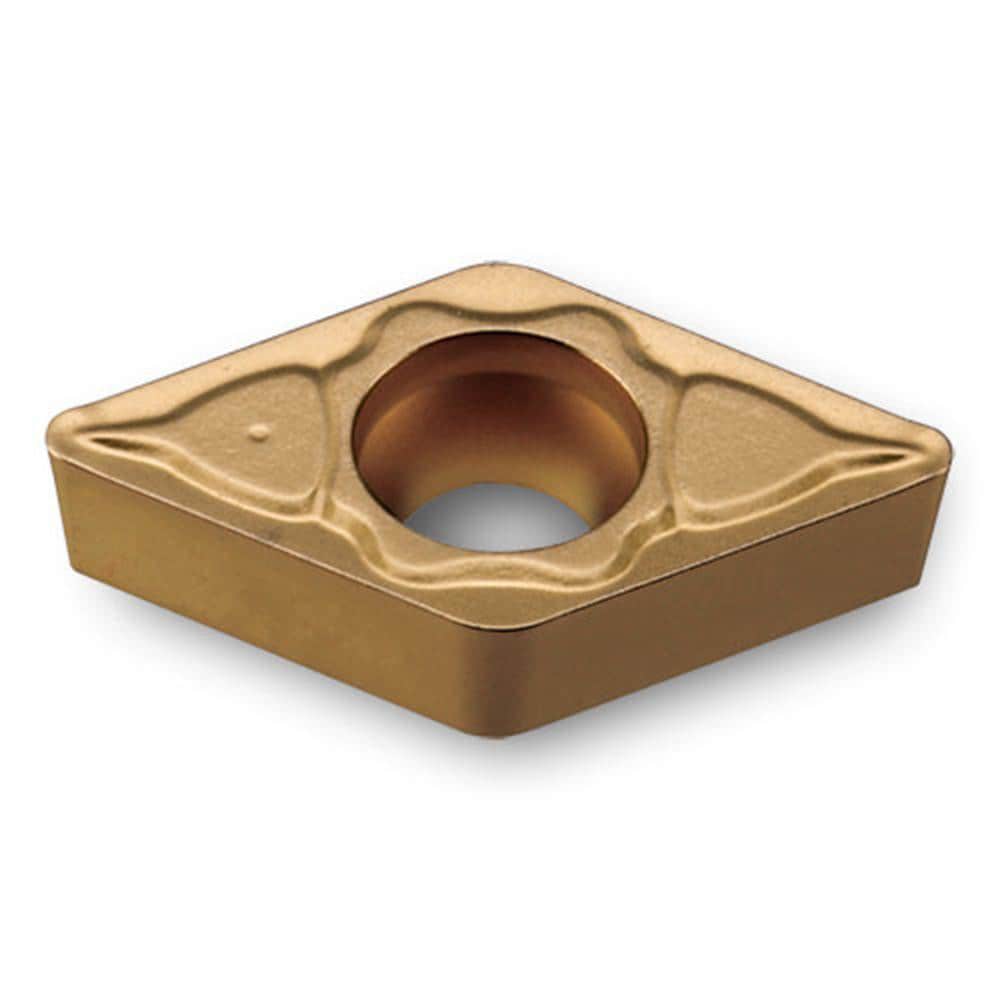

Turning Insert: DCMT32.51PC TT9080, Carbide
Item #: 29809423
Brand: Ingersoll Cutting Tools
Model #: 5522849
Product Specifications
| ANSI Insert Code | DCMT32.51 |
| ISO Insert Code | DCMT11T304 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 55 |
| Manufacturer Grade | TT9080 |
| Coating/Finish | AlTiN; TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Series | DCMT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4570 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | DCMT11T304PC TT9080 |
| Chip Breaker | PC |
| ANSI Size Code | 32.51 |
| ISO Size Code | 11T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
