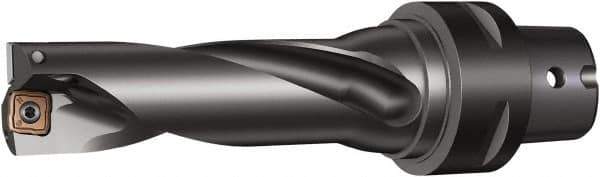

Sandvik Coromant - 57mm Max Drill Depth, 3xD, 18mm Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 92431279
Brand: Sandvik Coromant
Model #: 5765270
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 18.00 |
| Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Depth (mm) | 57.00 |
| Maximum Drill Depth (Decimal Inch) | 2.2441 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (mm) | 18.80 |
| Overall Length/Projection (mm) | 117.00 |
| Overall Length/Projection (Decimal Inch) | 4.6063 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (mm) | 54.00 |
| Flute Length (Decimal Inch) | 2.1260 |
| Body Length (Decimal Inch) | 3.6469 |
| Body Length (mm) | 92.63 |
| Shank Length (mm) | 24.37 |
| Shank Length (Decimal Inch) | 0.9596 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.40 |
