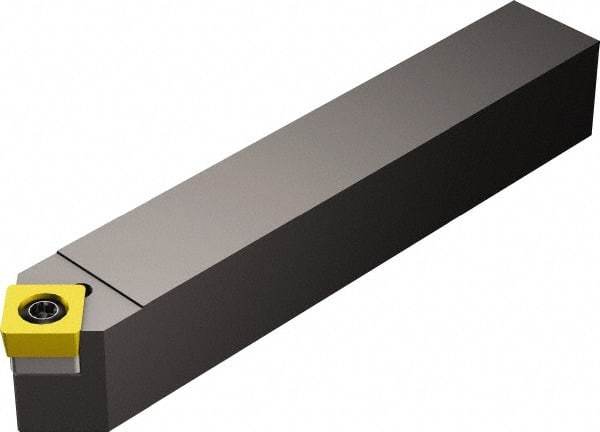

Sandvik Coromant - SSDCN, Neutral Cut, 45° Lead Angle, 1/2" Shank Height x 1/2" Shank Width, Neutral Rake Indexable Turning Toolholder - 3-1/2" OAL, SCMT 32.52 Insert Compatibility, Series CoroTurn 107
Item #: 92020874
Brand: Sandvik Coromant
Model #: 5751187
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SSDCN |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Lead Angle | 45 |
| Shank Width (Inch) | 1/2 |
| Shank Width (mm) | 12.70 |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Inch) | 1/2 |
| Shank Height (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (mm) | 88.90 |
| Overall Length (Decimal Inch) | 3.5000 |
| Insert Compatibility | SCMT 32.52 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Facing |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 88.90 |
| Back of Bar to Cutting Edge (Inch) | 3-1/2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.5000 |
| Head Length (mm) | 15.10 |
| Head Length (Decimal Inch) | 0.5945 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (Inch) | 3/8 |
| Insert Width (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
