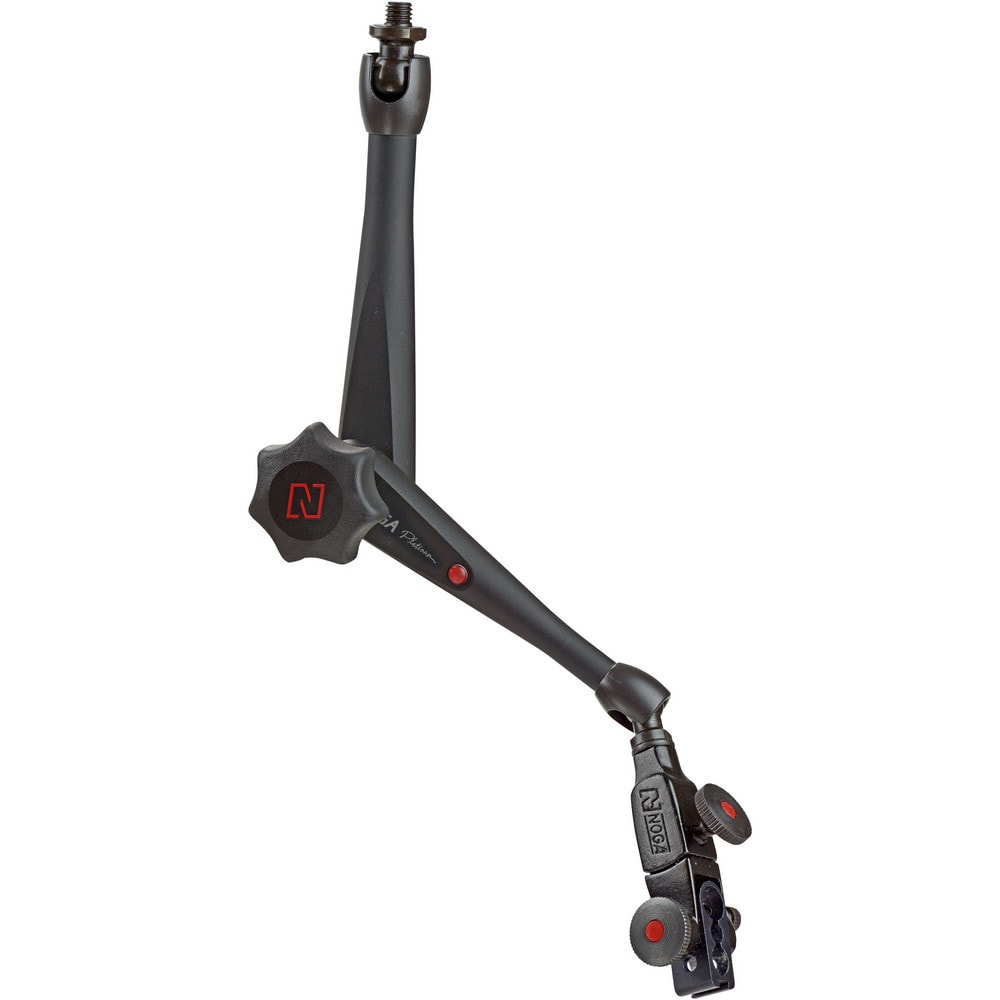

Indicator Positioner & Holder: Fine Adjustment
Item #: 72695125
Brand: Noga
Model #: DG3100
Product Specifications
| Arm Style | Articulated Arm |
| Adjustment Type | Knob |
| Base Mount Type | Weighted |
| Material | Aluminum |
| Includes Base | No |
| Base Type | No Base |
| Base Shape | No Base |
| Fine Adjustment | Yes |
| Post Height (mm) | 282.00 |
| Post Height (Decimal Inch) | 11.1000 |
| Post Diameter (Decimal Inch) | 0.59 |
| Arm Length | 11.1 |
| Arm Length (mm) | 282.00 |
| Arm Diameter (mm) | 15.00 |
| Arm Diameter (Decimal Inch) | 0.5900 |
| Overall Length (Decimal Inch) | 11.1500 |
| Overall Length (mm) | 282.0000 |
| Overall Length (Inch) | 11.15 |
| Calibrated | No |
| Clamping Diameter (mm) | 16.00 |
| Traceability Certification Included | No |
| Thread Size | M6 |
| Includes | Holder; Fine Adjustment |
| UNSPSC Code | 7290005392702 |
| Arm Style | Articulated Arm |
| Adjustment Type | Knob |
| Base Mount Type | Weighted |
| Material | Aluminum |
| Includes Base | No |
| Base Type | No Base |
| Base Shape | No Base |
| Fine Adjustment | Yes |
| Post Height (mm) | 282.00 |
| Post Height (Decimal Inch) | 11.1000 |
| Post Diameter (Decimal Inch) | 0.59 |
| Arm Length | 11.1 |
| Arm Length (mm) | 282.00 |
| Arm Diameter (mm) | 15.00 |
| Arm Diameter (Decimal Inch) | 0.5900 |
| Overall Length (Decimal Inch) | 11.1500 |
| Overall Length (mm) | 282.0000 |
| Overall Length (Inch) | 11.15 |
| Calibrated | No |
| Clamping Diameter (mm) | 16.00 |
| Traceability Certification Included | No |
| Thread Size | M6 |
| Includes | Holder; Fine Adjustment |
| UNSPSC Code | 7290005392702 |
| MSC Part # | 72695125 |
| Mfr Part # | DG3100 |
| Country of Origin Country of Origin is subject to change | Israel |
