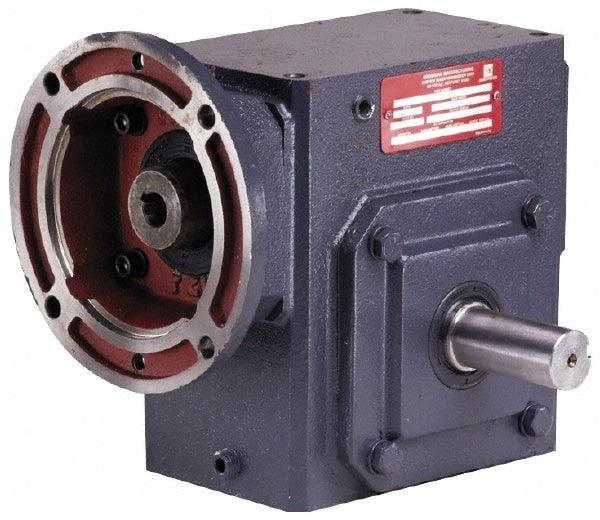

Speed Reducer: 2 hp Max Input
Item #: 08436347
Brand: Morse
Model #: XI1179
Product Specifications
| Centerline Distance | 3.2500 |
| Shaft Type | Double |
| Ratio | 50:1 |
| Maximum Input Horsepower | 2.00 |
| Nema/Iec Frame Size | 140TC NEMA |
| Minimum Torque (In/Lb) | 1311.0 |
| Maximum Torque (In/Lb.) | 2334.0 |
| Bore Diameter (Decimal Inch) | 0.8750 |
| Shaft Diameter (Decimal Inch) | 1.3750 |
| Minimum Input Horsepower | 1.00 |
| Output RPM at 1750 Input | 35.0 |
| Torque Output (In/Lb) with 1-1/2 Horsepower Motor @ 1750 | 1966 |
| Torque Output (In/Lb) with 2 Horsepower Motor @ 1750 | 2334 |
| Torque Output (In/Lb) with 1 Horsepower Motor @ 1750 | 1311 |
| Height (Decimal Inch) | 9.3800 |
| Length (Decimal Inch - 4 Decimals) | 8.5000 |
| Width (Decimal Inch - 4 Decimals) | 5.0000 |
| UNSPSC Code | 26111500 |
