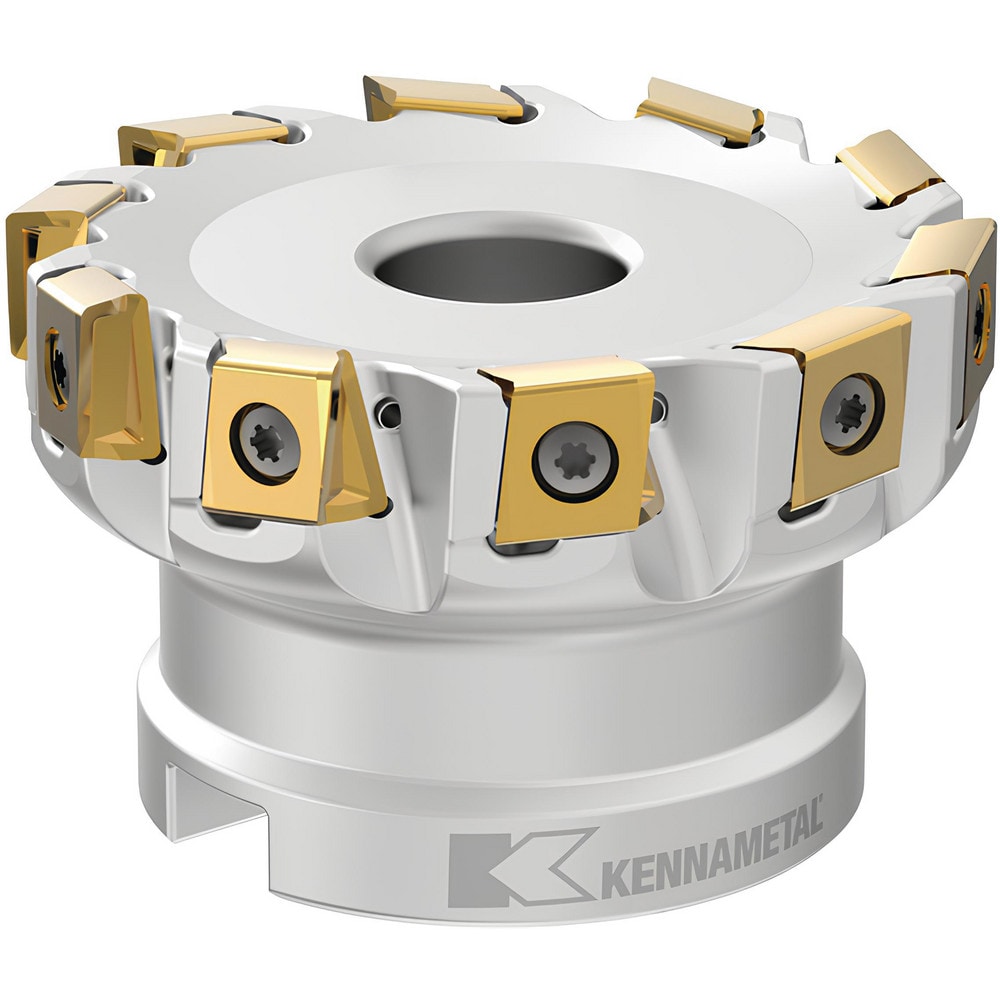

Indexable Square-Shoulder Face Mill: KT4D300Z10S100LN12L175, 3'' Cut Dia, 0.4781" Max Cutting Depth
Item #: 59512236
Brand: Kennametal
Model #: 7009754
Product Specifications
| Minimum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Depth of Cut (Decimal Inch) | 0.4781 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | 12 |
| Cutter Style | KT4 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Rake | Neutral |
| Series | Mill 4-12KT |
| Overall Height (Inch) | 1-3/4 |
| Keyway Width (Decimal Inch) | 0.3850 |
| Hub Diameter (Decimal Inch) | 2.1900 |
| Complete Insert Compatibility | LNGQ12-GE |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | KT4D300Z10S100LN12L175 |
| Coolant Through | No |
| Number Of Cutter Inserts | 10 |
| Minimum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Depth of Cut (Decimal Inch) | 0.4781 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | 12 |
| Cutter Style | KT4 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Rake | Neutral |
| Series | Mill 4-12KT |
| Overall Height (Inch) | 1-3/4 |
| Keyway Width (Decimal Inch) | 0.3850 |
| Hub Diameter (Decimal Inch) | 2.1900 |
| Complete Insert Compatibility | LNGQ12-GE |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | KT4D300Z10S100LN12L175 |
| Coolant Through | No |
| Number Of Cutter Inserts | 10 |
| MSC Part # | 59512236 |
| Mfr Part # | 7009754 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
