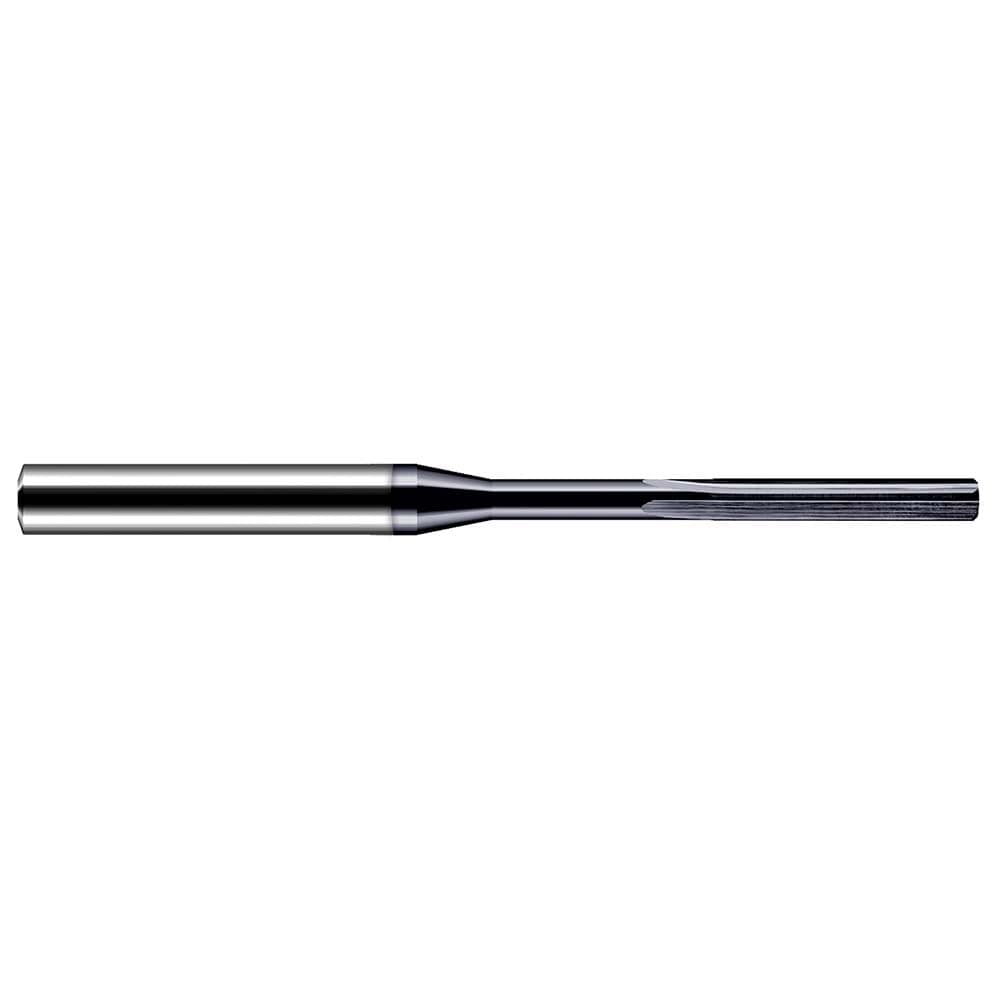

Chucking Reamer: 9/32" Dia, 6" OAL, 1-1/8" Flute Length, Straight-Cylindrical Shank, Solid Carbide
Item #: 88206404
Brand: Harvey Tool
Model #: RSB2812-C3
Product Specifications
| Reamer Diameter (Inch) | 9/32 |
| Reamer Diameter Range (Decimal Inch) | 0.2500 - 0.2999 |
| Reamer Diameter (Decimal Inch) | 0.2812 |
| Tool Material | Solid Carbide |
| Flute Type | Straight |
| Spiral Direction | Straight |
| Coating/Finish | AlTiN |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Dowel Pin Reamer | No |
| Over/Under Size Reamer | No |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Number of Flutes | 6 |
| Shank Diameter | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Flute Length (Inch) | 1-1/8 |
| Reamer Diameter Tolerance | +.0002 to ?.0000 in |
| Over/Under Size Direction | Over |
| Series | Miniature Reamers |
| Cutting Direction | Right Hand |
| Additional Information | Miniature Reamers; Holemaking & Threading |
| UNSPSC Code | 23241611 |
| Country of Origin | UNITED STATES |
