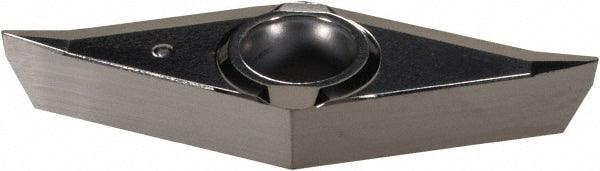

Turning Insert: VCGT330.5 AFV12K, Carbide
Item #: 93972818
Brand: Vargus
Model #: 13181
Product Specifications
| ANSI Insert Code | VCGT330.5 |
| ISO Insert Code | VCGT160402 |
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35 |
| Manufacturer Grade | V12K |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | VCGT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Side Clearance | Positive |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Rake | Positive |
| Primary Workpiece Material Code | P |
| Chip Breaker | AF |
| ANSI Size Code | 330.5 |
| ISO Size Code | 160402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 330.5 |
| Country of Origin | Israel |
