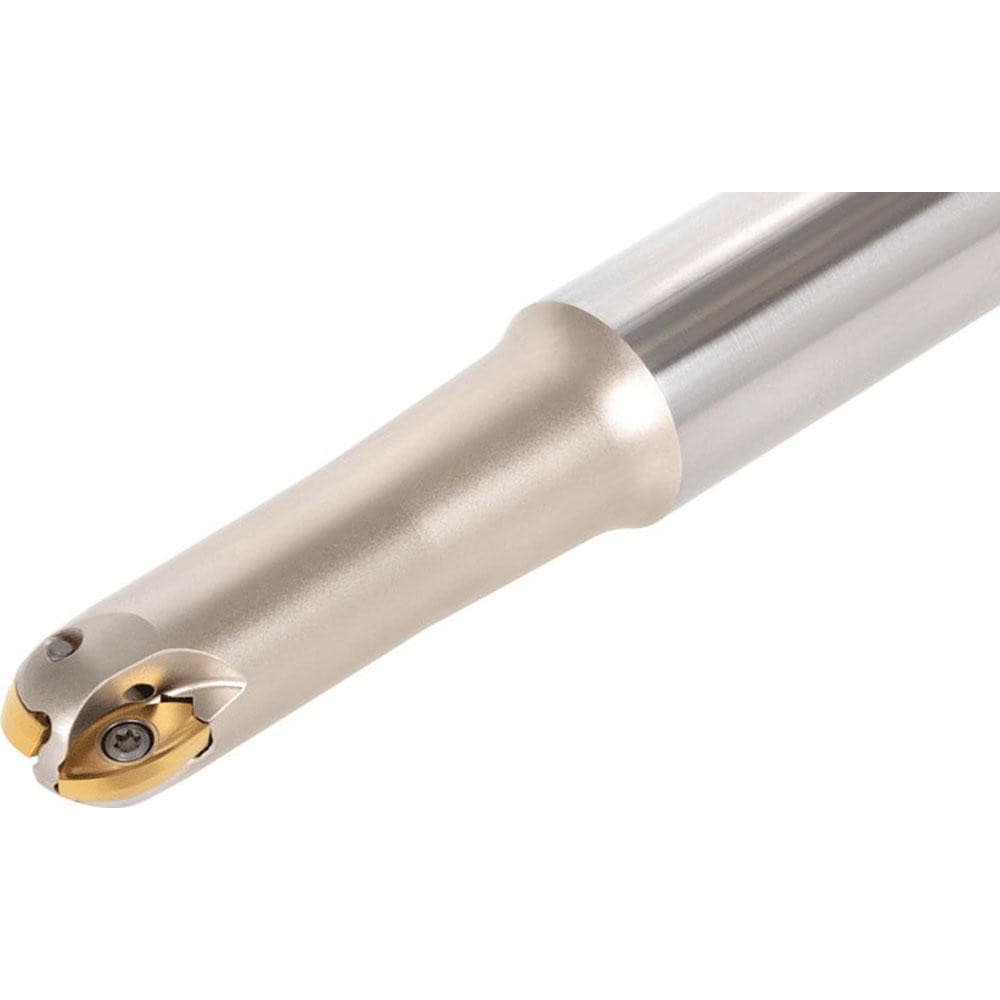

Indexable Ball Nose End Mills; Cutting Diameter (Decimal Inch): 1.0000; Tool Material: Steel; Maximum Depth of Cut (Decimal Inch): 0.6900; Shank Type: Cylindrical
Item #: 95261384
Brand: Tungaloy
Model #: 6166364
Product Specifications
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.6900 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Compatible Insert Style | ZRBU |
| Compatible Insert Size Code | 100 |
| Toolholder Style | EBRU |
| Tapered Neck | No |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | EBRU |
| Head Length (Decimal Inch) | 2.7500 |
| Tool Application | Profile Milling |
| Manufacturers Catalog Number | EBRU100SW100S0600 |
| Cutting Diameter (Inch) | 1 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| Number Of Inserts | 2 |
| Complete Insert Compatibility | ZRBU |
| UNSPSC Code | 27112803 |
| Country of Origin | South Korea |
