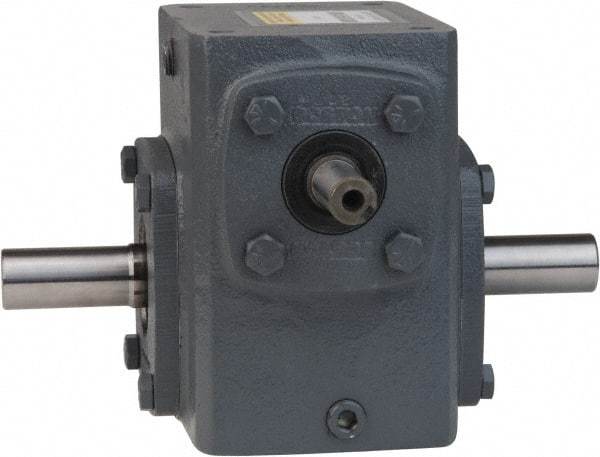

Boston Gear - 6 Centerline Distance, 50:1, 35 RPM Output, 7.65 Input Horsepower, 9,836 Lbs. Max Torque, Speed Reducer - Part No. 760-50-H, 1-1/2" Shaft Diam, Double Shaft Left & Right, 12-1/2" High
Item #: 91236661
Brand: Boston Gear
Model #: 51844
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 6.000 |
| Ratio | 50:1 |
| PartNo | 760-50-H |
| Shaft Style | Double Shaft Left/Right |
| Shaft Diameter (Decimal Inch) | 1.5000 |
| Height (Inch) | 12.5 |
| Maximum Torque Inch/Lbs (Pounds) | 9836.00 |
| Maximum Input Horsepower | 7.65 |
| Output RPM at 1750 Input | 35.0 |
