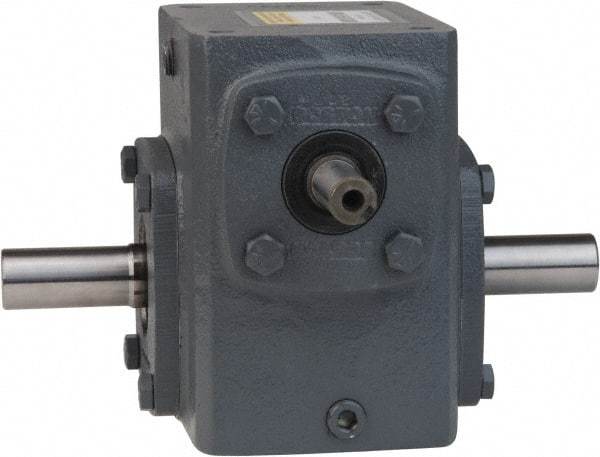

Boston Gear - 5.16 Centerline Distance, 30:1, 58 RPM Output, 9.12 Input Horsepower, 8,336 Lbs. Max Torque, Speed Reducer - Part No. 752-30-H, 1-1/4" Shaft Diam, Double Shaft Left & Right, 10-1/2" High
Item #: 91236604
Brand: Boston Gear
Model #: 51817
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 5.160 |
| Ratio | 30:1 |
| PartNo | 752-30-H |
| Shaft Style | Double Shaft Left/Right |
| Shaft Diameter (Decimal Inch) | 1.2500 |
| Height (Inch) | 10.5 |
| Maximum Torque Inch/Lbs (Pounds) | 8336.00 |
| Maximum Input Horsepower | 9.12 |
| Output RPM at 1750 Input | 58.0 |
