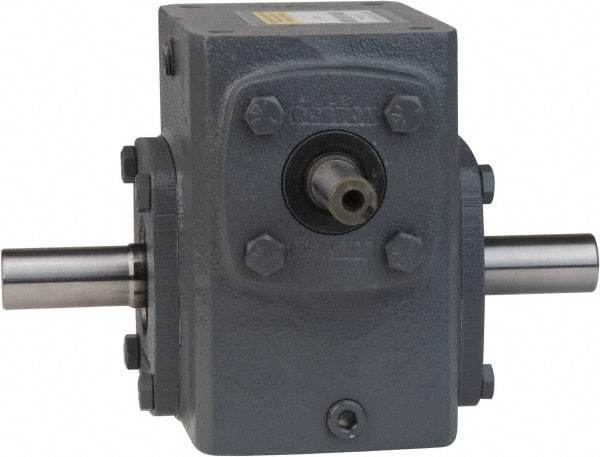

Boston Gear - 1 Centerline Distance, 15:1, 117 RPM Output, 0.33 Input Horsepower, 146 Lbs. Max Torque, Speed Reducer - Part No. 710-15-H, 3/8" Shaft Diam, Double Shaft Left & Right, 2.31" High
Item #: 91236513
Brand: Boston Gear
Model #: 51592
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.000 |
| Ratio | 15:1 |
| PartNo | 710-15-H |
| Shaft Style | Double Shaft Left/Right |
| Shaft Diameter (Decimal Inch) | 0.3750 |
| Height (Inch) | 2.31 |
| Maximum Torque Inch/Lbs (Pounds) | 146.00 |
| Maximum Input Horsepower | 0.33 |
| Output RPM at 1750 Input | 117.0 |
