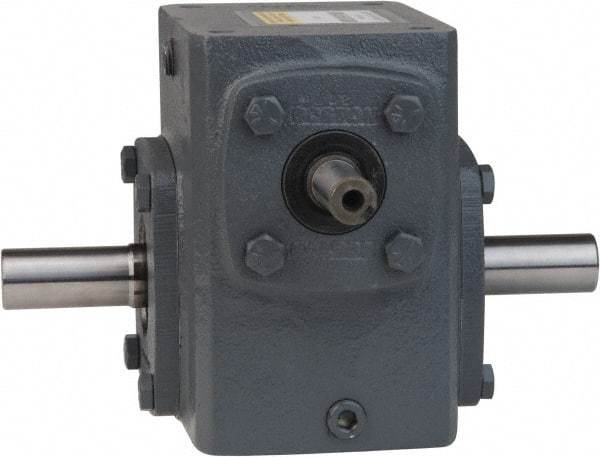

Boston Gear - 1.54 Centerline Distance, 30:1, 58 RPM Output, 0.54 Input Horsepower, 446 Lbs. Max Torque, Speed Reducer - Part No. 715-30-H, 5/8" Shaft Diam, Double Shaft Left & Right, 3.44" High
Item #: 91236273
Brand: Boston Gear
Model #: 51646
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.540 |
| Ratio | 30:1 |
| PartNo | 715-30-H |
| Shaft Style | Double Shaft Left/Right |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Height (Inch) | 3.44 |
| Maximum Torque Inch/Lbs (Pounds) | 446.00 |
| Maximum Input Horsepower | 0.54 |
| Output RPM at 1750 Input | 58.0 |
