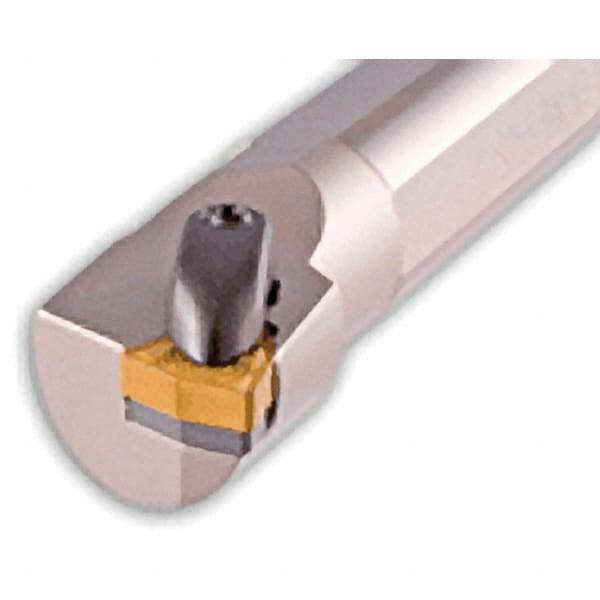

Iscar - 40mm Min Bore Diam, 350mm OAL, 32mm Shank Diam, S-DWLN Indexable Boring Bar - 55mm Max Bore Depth, WN.. 0804.. Insert, Clamp Holding Method
Item #: 91110957
Brand: Iscar
Model #: 3602568
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-DWLN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 40.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 55.00 |
| Overall Length (mm) | 350.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Compatibility | WN.. 0804.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 22.00 |
| Insert Inscribed Circle (mm) | 12.70 |
| Rake Angle | -10 |
| Complete Insert Compatibility | WNGA 080404T-MC; WNGA 080408-M3; WNGA 080408T; WNMA 080408; WNMG 00408-M3M; WNMG 080404-GN; WNMG 080404-NF; WNMG 080404-PP; WNMG 080404-TF; WNMG 080404-VL; WNMG 080408-NR; WNMG 080408-TNM; WNMG 080408-WF; WNMG 080408-WG; WNMM 080408-NM; WNMZ 080404-LF |
| Toolholder Material | Steel |
