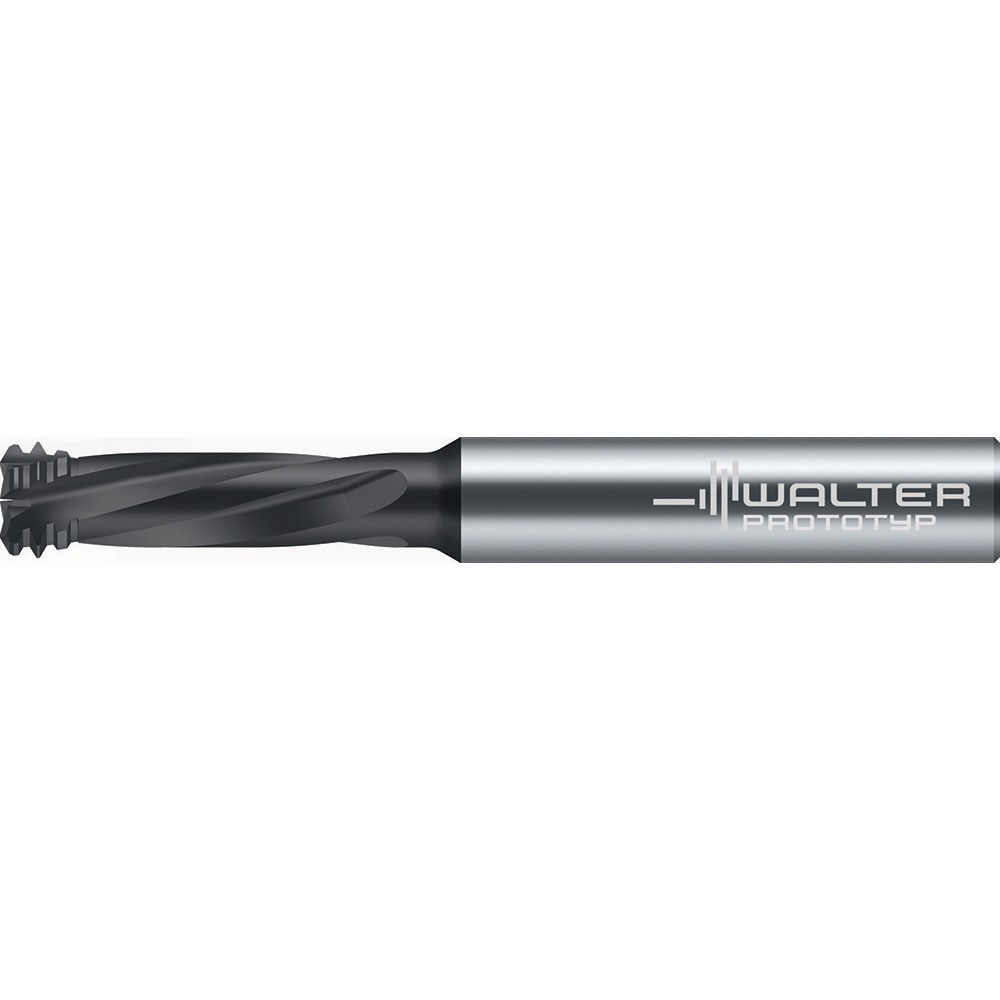

Helical Flute Thread Mill: 7/16-14, Internal, 4 Flute, 10.0000 mm Shank Dia, Solid Carbide
Item #: 55400154
Brand: Walter-Prototyp
Model #: 8378440
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 7/16-14 |
| Thread Type | Internal |
| Shank Diameter (mm) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Cutting Diameter (mm) | 8.50 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.3346 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2220 |
| Length of Cut (mm) | 5.6400 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.000 |
| Overall Length (mm) | 72.0000 |
| Overall Length (Decimal Inch) | 2.8346 |
| Thread Standard | UNC |
| Flute Direction | Left Hand |
| Series | TC645-UNC-A1E |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 14 |
| UNSPSC Code | 23242117 |
