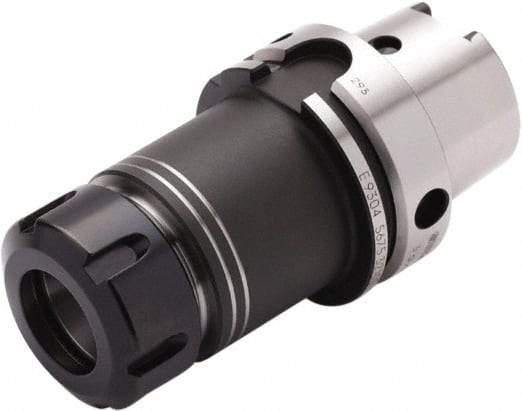

Seco - 0.118" to 1.024" Capacity, 120mm Projection, HSK100A Hollow Taper, ER40 Collet Chuck - 6.693" OAL
Item #: 91065300
Brand: Seco
Model #: 66069
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Hollow Taper |
| Taper Size | HSK100A |
| Projection (mm) | 120.00 |
| Projection (Decimal Inch) | 4.7280 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.1180 |
| Maximum Collet Capacity (Decimal Inch) | 1.0240 |
| Overall Length (Decimal Inch) | 6.6930 |
| Nose Diameter (Decimal Inch) | 2.4800 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 2.4800 |
