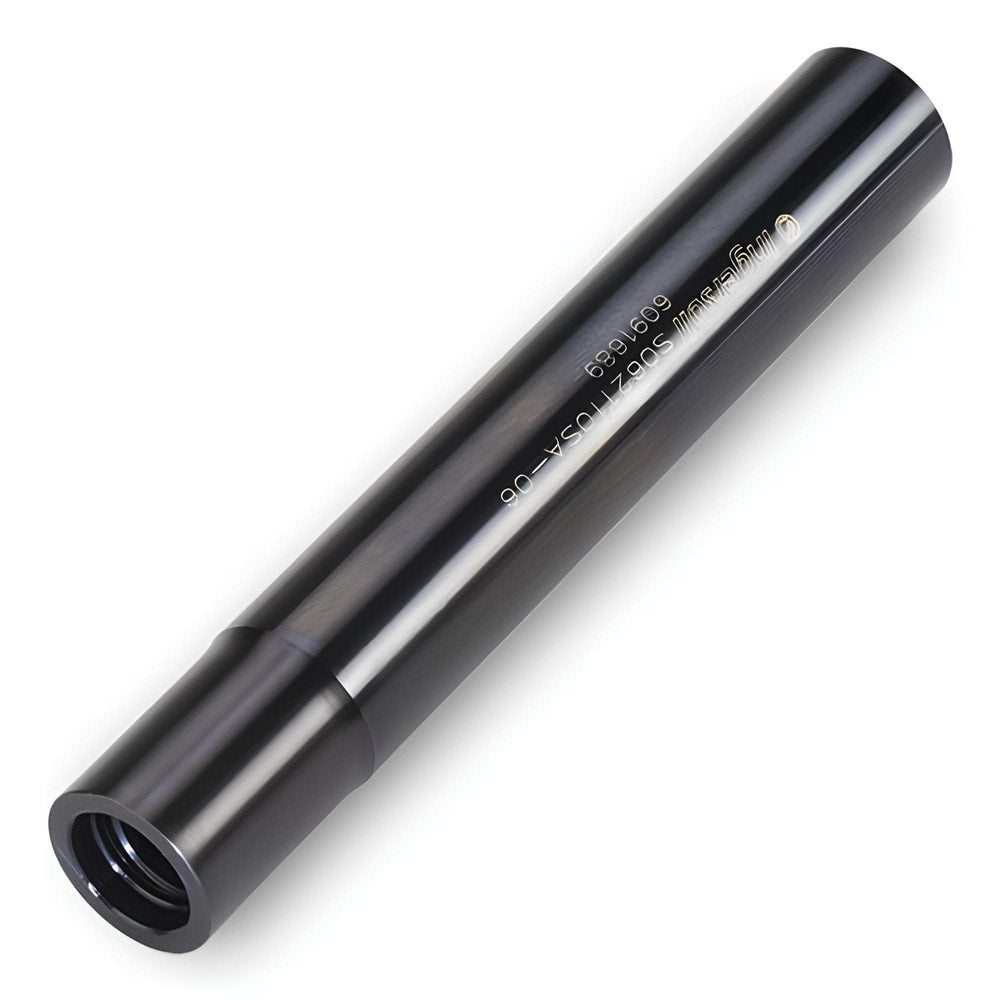

Brand: Ingersoll Cutting Tools / Part #: 4508093
Item #: 51160133
Brand: Ingersoll Cutting Tools
Model #: 4508093
Product Specifications
| Overall Length (Decimal Inch) | 7.0000 |
| Neck Diameter (Decimal Inch) | 0.9400 |
| Neck Thread Size | T15 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.9400 |
| Toolholder Style | S*T*SA |
| Tool Material | Steel |
| Series | S*T*SA |
| Tip Connection Size | T15 |
| Tool Application | Chamfering; Milling |
| Tool Performance | General Purpose |
| For Use With | Milling Tips |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 2.4000 |
| Extension Length (Decimal Inch) | 2.5000 |
| Shank Shape | Round |
| Thread Size Connection to Tip | T15 |
| Manufacturers Catalog Number | S100T15SA-24 |
| Type | "T" Style Thread Connection |
| Coolant Through | No |
