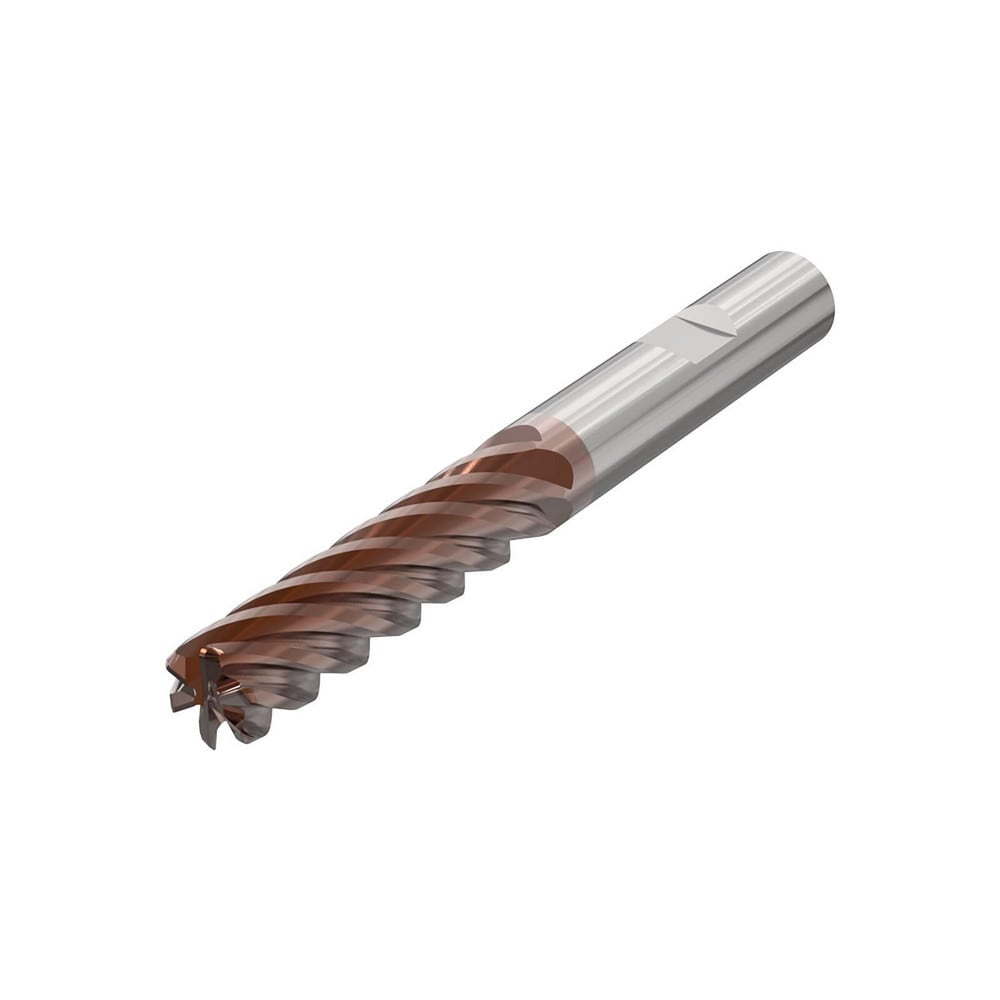

Corner Radius End Mill: 10.00 mm Dia, 40.00 mm LOC, 1.00 mm Radius, 6 Flute, Solid Carbide
Item #: 88624689
Brand: Seco
Model #: 10228455
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 6 |
| Length of Cut (mm) | 40.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | HXT |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.00 |
| Overall Length (mm) | 89.00 |
| Coolant Through | No |
| Pitch | Variable |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 10.00 |
| Reach Length (mm) | 40.00 |
| Corner Radius Tolerance | -0.02/0.02 mm |
| Mill Diameter Tolerance | -0.040/-0.025 mm |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S; M |
| Series | JS720 |
| TIR Maximum (mm) | 0.01 |
| Material Application | Stainless Steel; Superalloys & Titanium |
| Coating Classification | PVD |
| For Use With. | Toolholder |
| Helix Style | Medium |
| Manufacturers Catalog Number | 10228455 |
| Country of Origin | Netherlands |
