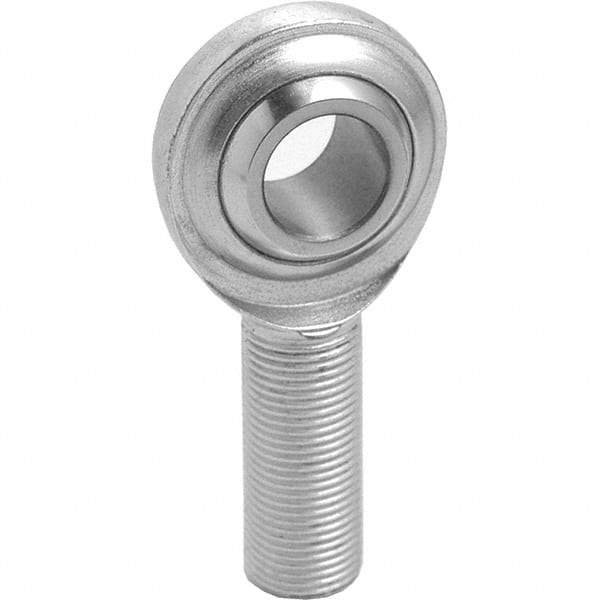

Tritan - 1/2" ID, 8,386 Lb Max Static Cap, Male Spherical Rod End - 1/2-20 RH, 5/8" Shank Diam, 1-1/2" Shank Length, Zinc Plated Carbon Steel with PTFE Lined Chrome Steel Raceway
Item #: 90158965
Brand: Tritan
Model #: CM 8TS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.5000 |
| Inside Diameter (mm) | 13.0000 |
| Inside Diameter (Inch) | 1/2 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.0000 |
| Maximum Outside Diameter (mm) | 0.00 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Static Load Capacity (Pounds) | 8386.0 |
| Width (Inch) | 1.312 |
| Width (Decimal Inch) | 1.3120 |
| Width (mm) | 33.30 |
| Thread Size | 1/2-20 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 15.9000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Raceway Material | PTFE Lined Chrome Steel |
| Shank Length (Decimal Inch) | 1.5000 |
| Shank Length (mm) | 38.100 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 3.090 |
| Overall Length (mm) | 78.5000 |
| Overall Length (Decimal Inch) | 3.0900 |
