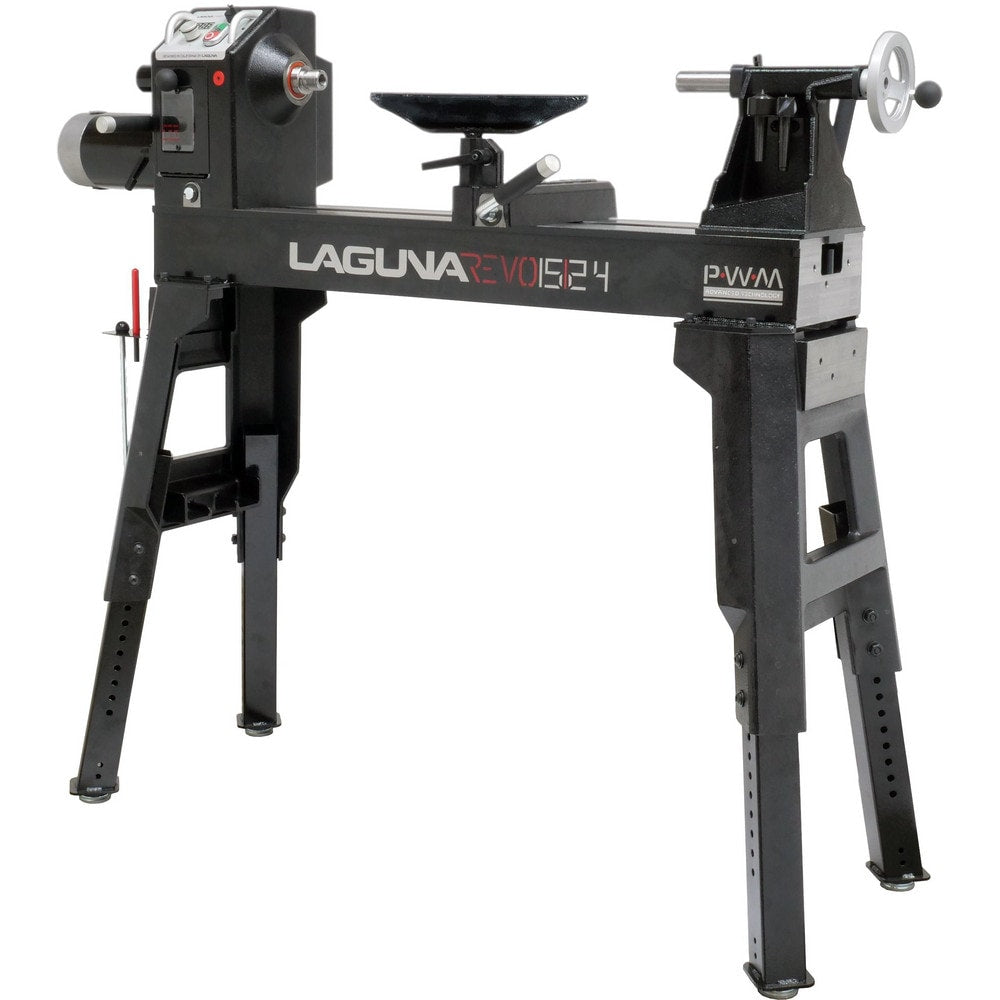

Woodworking Lathe: 15" Swing, 24" Between Centers, 1.5 HP, 110 V
Item #: 82742792
Brand: Laguna
Model #: 415241
Product Specifications
| Swing (Inch) | 15 |
| Distance Between Centers (Mm) | 609.6 |
| Distance Between Centers (Inch) | 24 |
| Distance Between Centers (Decimal Inch) | 24 |
| Distance Between Centers (Frac Inch) | 24 |
| Swing Over Tool Rest Base (Decimal Inch) | 11.34375 |
| Face Plate Diameter (Decimal Inch) | 3 |
| Spindle Nose Designation | 1-1/4 in x 8 TPI Threaded |
| Tool Rest Size (Inch) | 6 |
| Headstock Taper Size | MT2 |
| Tailstock Taper Size | MT2 |
| Maximum Spindle Speed (Rpm) | 4200 |
| Maximum Spindle Speed (RPM) | 4200 |
| Minimum Spindle Speed (Rpm) | 50 |
| Minimum Spindle Speed (RPM) | 50 |
| Headstock Spindle Hole Size (Inch) | 3/8 in |
| Tailstock Spindle Hole Size (Inch) | 0.375 |
| Ram Travel (Inch) | 4.5 |
| Tailstock Quill Travel (Inch) | 4.5 |
| Bed Construction | Cast/Machined Steel |
| Horsepower (Hp) | 1.5 HP |
| Psc Code | 3220 |
| UNSPSC Code | 23101511 |
| Overall Depth (Decimal Inch) | 19.9 |
| Overall Height (Decimal Inch) | 56.2 in |
| Country of Origin | Taiwan |
