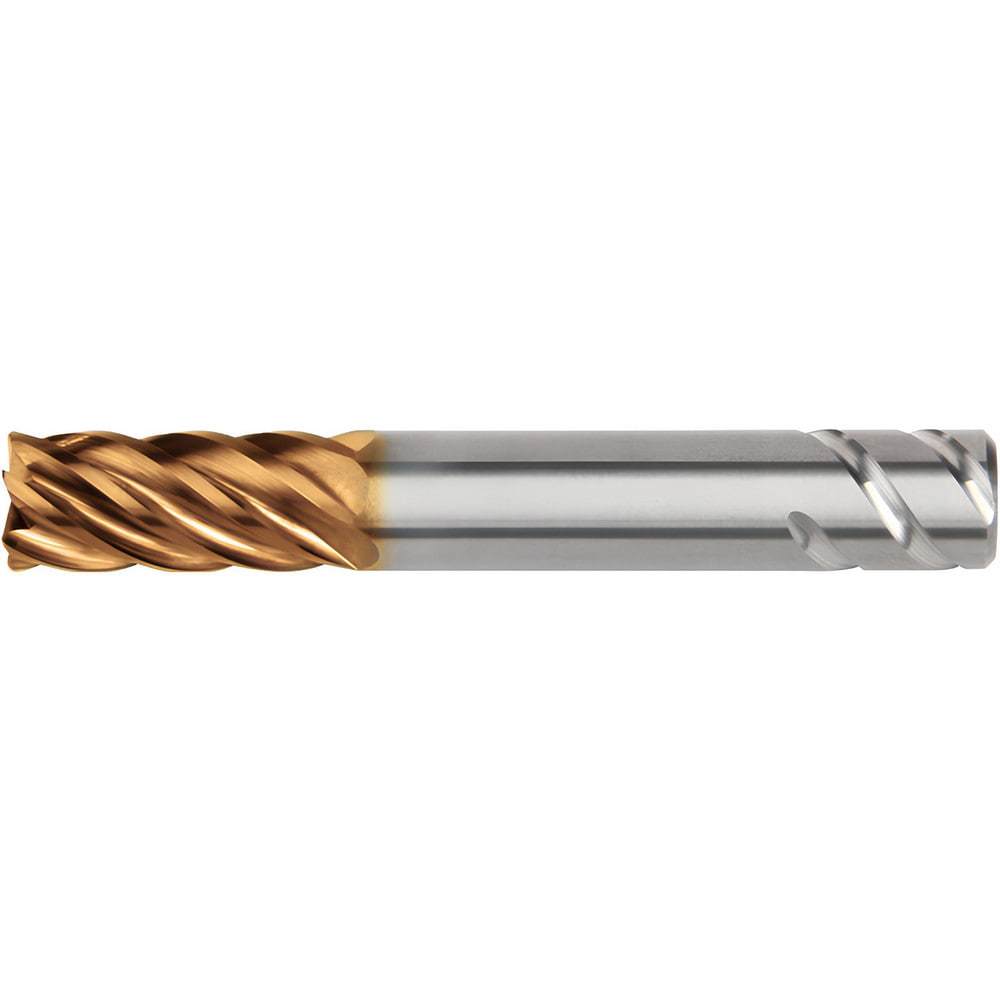

Square End Mill: 3/4" Dia, 1-5/8" LOC, 6 Flute, Solid Carbide
Item #: 67233932
Brand: Kennametal
Model #: 7077538
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1-5/8 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Single |
| Coating/Finish Family | AlCrN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; M |
| Coating/Finish | AlCrN |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Safe-Lock |
| Length Type | Regular |
| Series | UJDE |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1-5/8 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Single |
| Coating/Finish Family | AlCrN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; M |
| Coating/Finish | AlCrN |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Safe-Lock |
| Length Type | Regular |
| Series | UJDE |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 67233932 |
| Mfr Part # | 7077538 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
