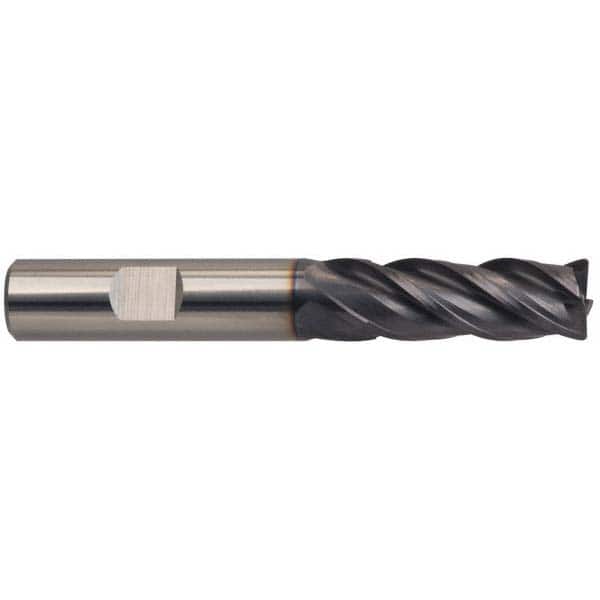

Square End Mill: 0.315'' Dia, 0.945'' LOC, 4 Flutes, Solid Carbide Single End, FIREX Finish, Spiral Flute, Variable Helix, Centercutting, RH Cut, RH Flute, Series 3871
Item #: 89479034
Brand: Guhring
Model #: 9038710080000
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 24.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | FIREX |
| Shank Diameter (mm) | 8.00 |
| Helix Angle | 35/38 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | No |
| Overall Length (mm) | 75.00 |
| Length Of Cut Range (Decimal Inch) | 0.8000 - 1.0000 |
| Shank Type | Weldon Flat |
| Length of Cut (Decimal Inch) | 0.9450 |
| Material Grade | Proprietary |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Length Type | Long |
| Series | 3871 |
