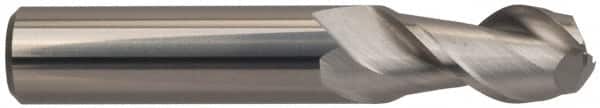

Square End Mill: 9/16'' Dia, 1-1/8'' LOC, 9/16'' Shank Dia, 3-1/2'' OAL, 2 Flutes, Solid Carbide Single End, Uncoated, Spiral Flute, 45 ° Helix, Centercutting, RH Cut, RH Flute, Series 3174
Item #: 89478747
Brand: Guhring
Model #: 9031740142900
Product Specifications
| Mill Diameter (Inch) | 9/16 |
| Mill Diameter (Decimal Inch) | 0.5625 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 1-1/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 9/16 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 3-1/2 |
| Helix Angle | 45 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Length of Cut (Decimal Inch) | 1.1250 |
| Material Grade | Proprietary |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Overall Length (Decimal Inch) | 3.5000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Length Type | Regular |
| Series | 3174 |
