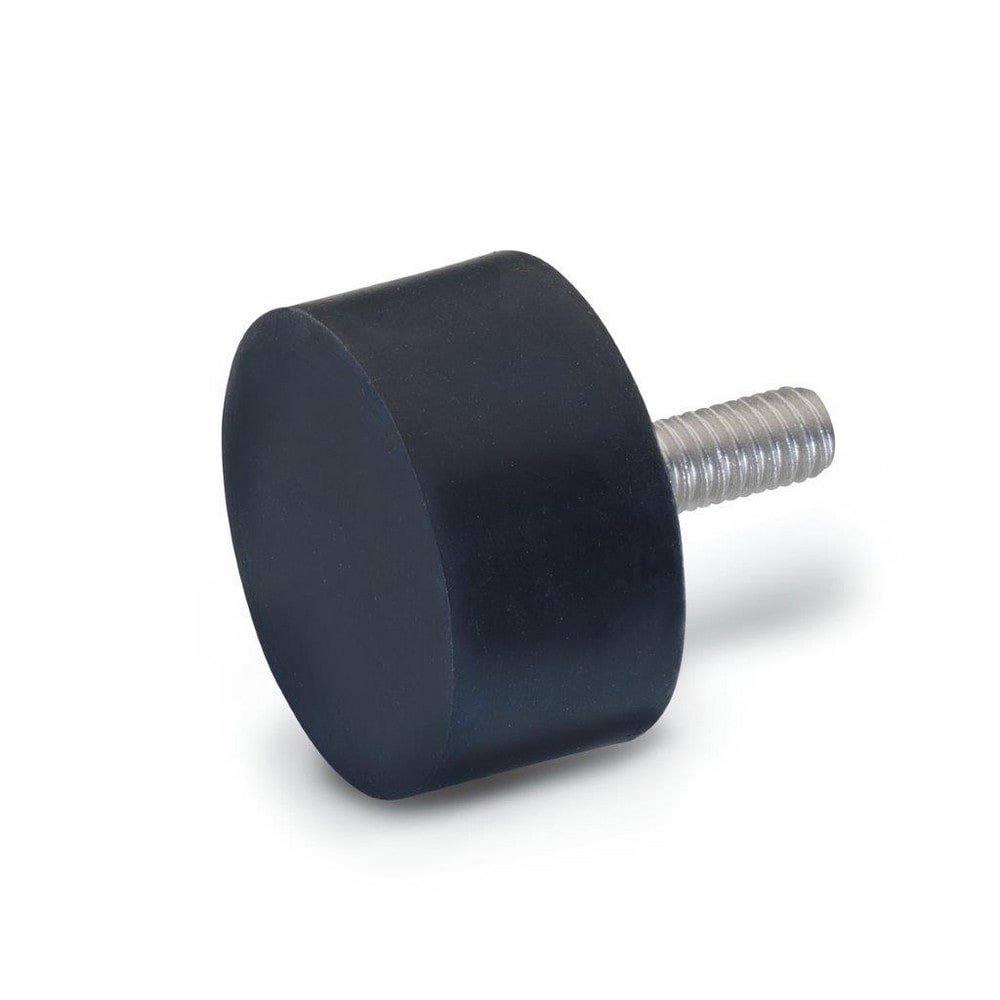

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 2846.86 N; Top Diameter: 51.00; Bottom Diameter: 51; Thread Size: 3/8-16; Overall Width: 51 mm
Item #: 71016562
Brand: J.W. Winco
Model #: 452.1-51-41-3/8-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 2846.86 N |
| Top Diameter | 51.00 |
| Bottom Diameter | 51 |
| Thread Size | 3/8-16 |
| Overall Width | 51 mm |
| Overall Diameter | 51 mm |
| Thread Length (Decimal Inch) | 0.6300 |
| Deflection | 0.4000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.587 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 41 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 2846.86 N |
| Top Diameter | 51.00 |
| Bottom Diameter | 51 |
| Thread Size | 3/8-16 |
| Overall Width | 51 mm |
| Overall Diameter | 51 mm |
| Thread Length (Decimal Inch) | 0.6300 |
| Deflection | 0.4000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.587 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 41 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71016562 |
| Mfr Part # | 452.1-51-41-3/8-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
