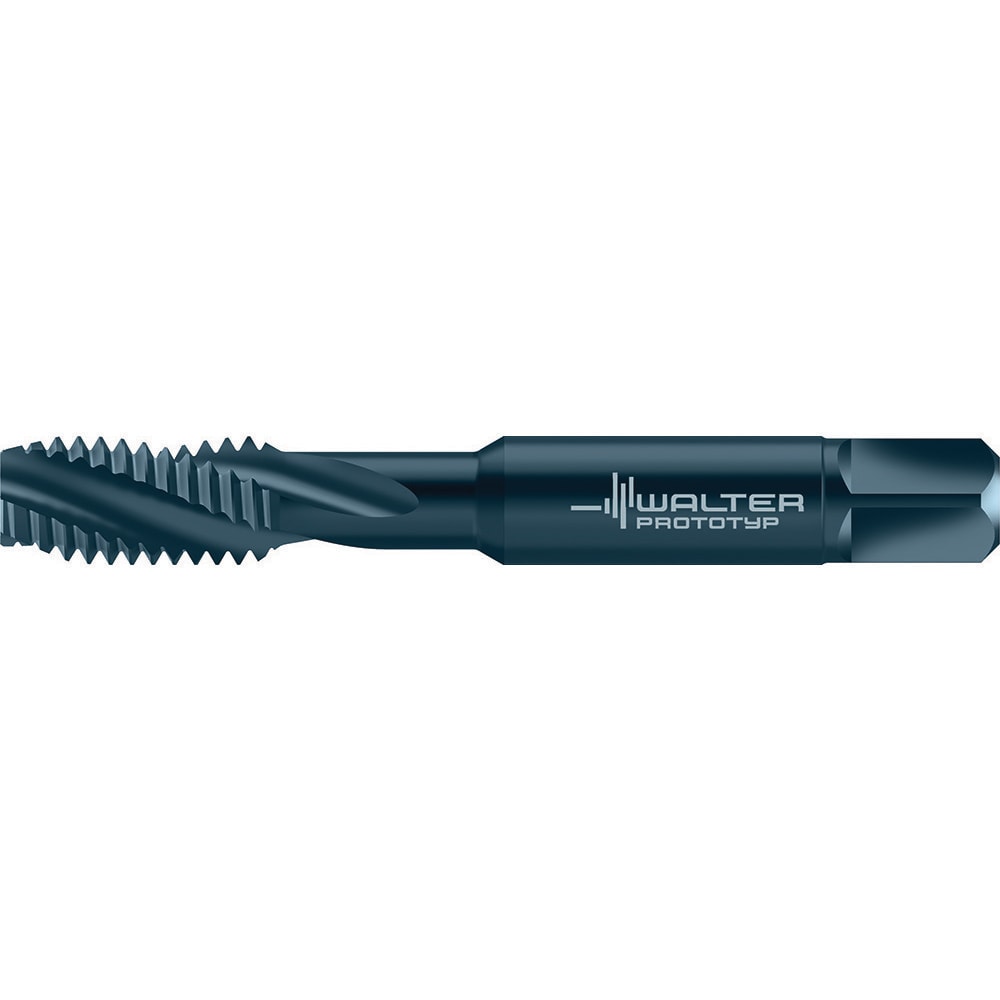

Spiral Flute Tap: 5/16-24, UNF, 3 Flute, Bottoming Chamfer, 3B Class of Fit, High-Speed Steel-E, Steam Oxide Finish
Item #: 53433736
Brand: Walter-Prototyp
Model #: 8046390
Product Specifications
| Thread Size (Inch) | 5/16-24 |
| Thread Standard | UNF |
| Chamfer | Bottoming |
| Material | High-Speed Steel-E |
| Thread Limit | H9 |
| Class Of Fit | 3B |
| Coating/Finish | Steam Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 25.00 |
| Oversize | No |
| Threads per Inch | 24 |
| Thread Length (Decimal Inch) | 0.7480 |
| Thread Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 2.8524 |
| Overall Length (mm) | 72.4500 |
| Application | Threading |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Shank Diameter (mm) | 8.0700 |
| Tapping Depth (Decimal Inch) | 0.7480 |
| Tapping Depth (mm) | 19.00 |
| Square Length (mm) | 9.65 |
| Square Length (Decimal Inch) | 0.3799 |
| Square Size (Decimal Inch) | 0.2380 |
| Square Size (mm) | 6.04 |
| Flute Style | Spiral |
| Series | A234003S |
| UNSPSC Code | 23241600 |
