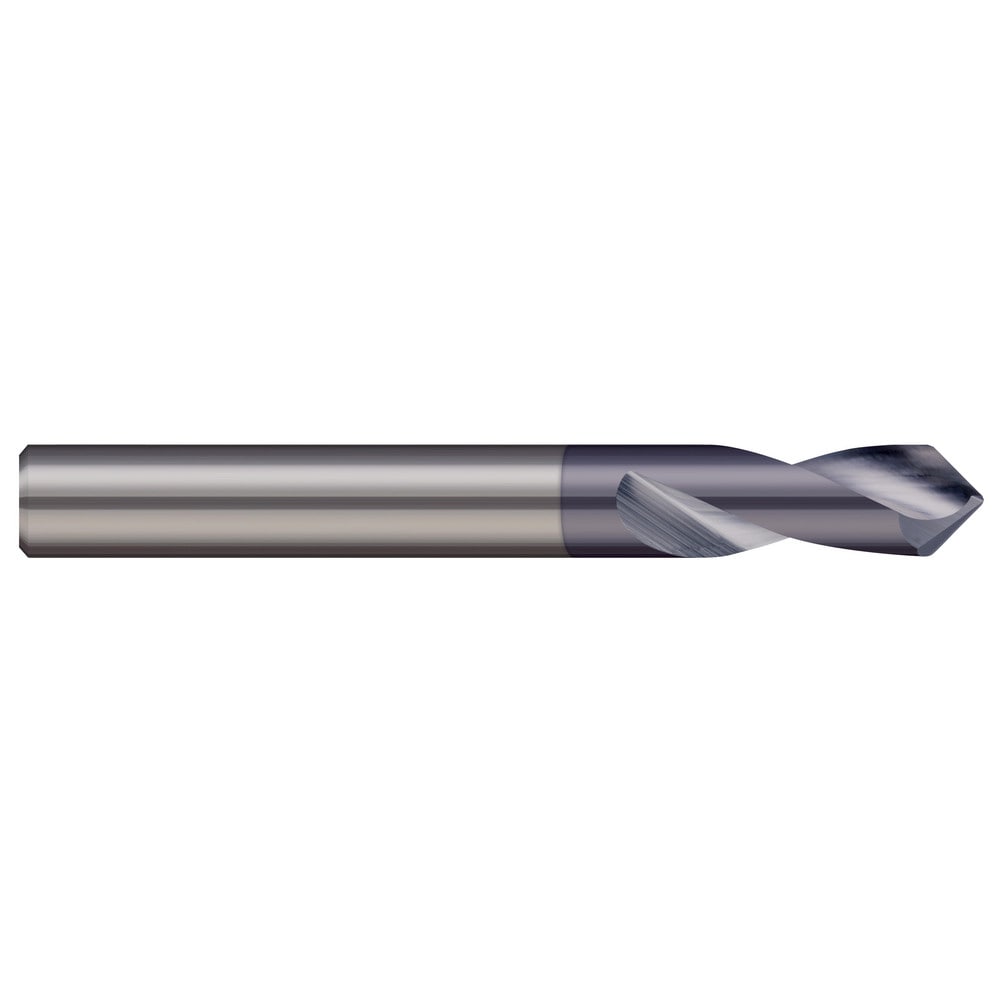

Spotting Drill: 140 ° Point, Solid Carbide
Item #: 78647468
Brand: Micro 100
Model #: SPD-312-140X
Product Specifications
| Drill Point Angle | 140 |
| Cutting Diameter (Decimal Inch) | 0.3125 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Single/Double Ended | Single |
| Series | Drills - Spotting & Centering Drill |
| Cutting Diameter (Inch) | 5/16 |
| Shank Diameter (Fractional Inch) | 5/16 |
| Flute Length (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Length (Decimal Inch) | 0.7500 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Helix Angle | 25.00 |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
