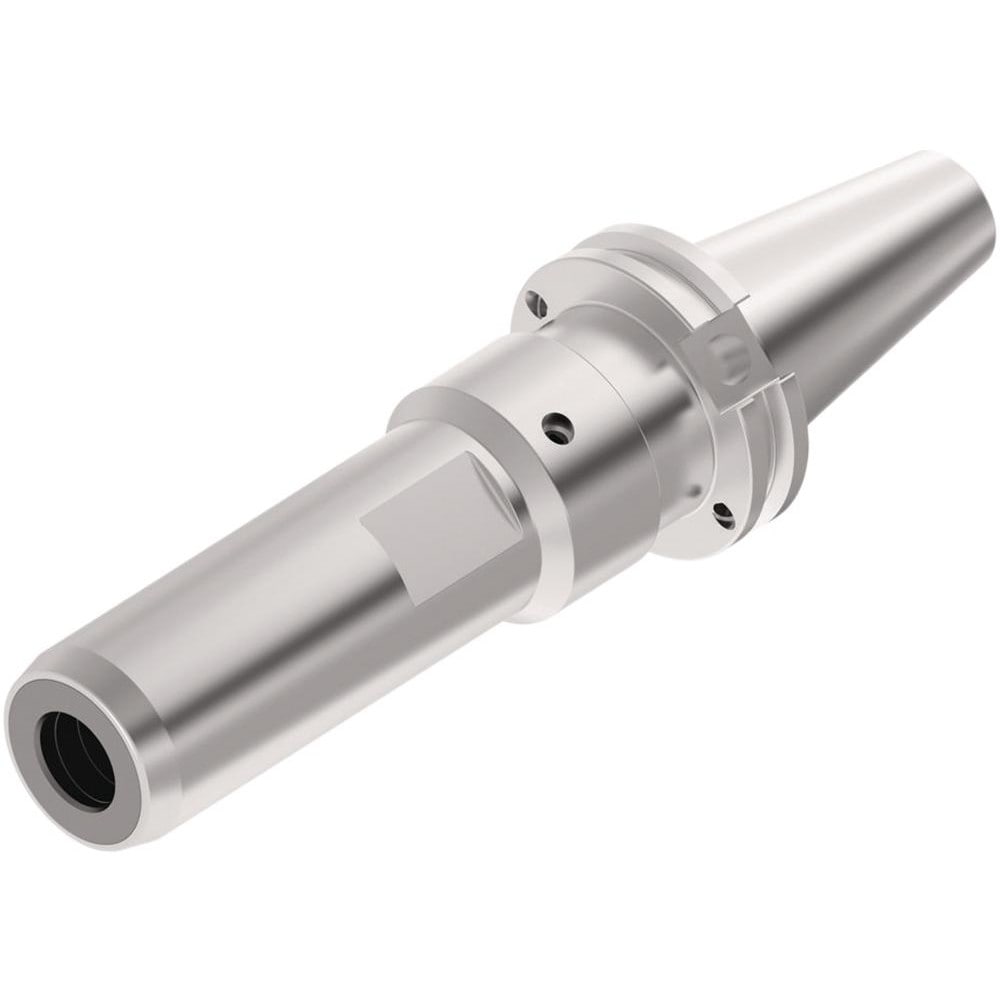

Hydraulic Tool Chuck: CV40 Taper Shank, 16.00 mm Hole
Item #: 84757616
Brand: Kennametal
Model #: 7138022
Product Specifications
| Shank Type | Straight-Cylindrical |
| Taper Size | CV40 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.0000 |
| Nose Diameter | 1-15/32 |
| Nose Diameter (Mm) ( - 2 Decimals) | 37.54 |
| Projection (mm) | 190.00 |
| Projection | 7-15/32 |
| Clamping Depth (mm) | 49.00 |
| Clamping Depth (Decimal Inch) | 1.9291 |
| Balanced To Rpm | 30000 |
| TIR (Decimal Inch) | 0.000118 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 10.1673 |
| Overall Length (mm) | 258.2500 |
| Series | KSEM |
| Material | Alloy Steel |
| Hole Diameter (Mm) ( - 0 Decimals) | 16.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.4780 |
| Projection (Decimal Inch) | 7.4803 |
| UNSPSC Code | 27112800 |
| Country of Origin | Slovenia |
