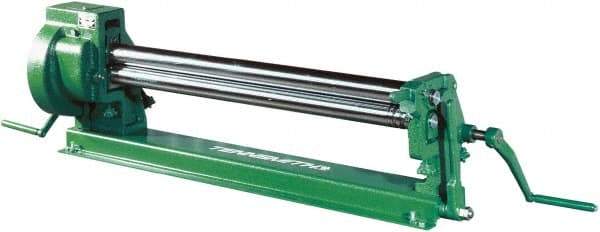

Tennsmith - 28 Gauge Max Stainless Steel Capacity, 42 Inch Max Forming Width, Bench Machine, Manual Slip Roll - 57 Inch Overall Width, x 19 Inch Overall Height, 2 Inch Slip Roll Diameter, 3/16, 1/4, 5/16 Inch Wire Groove Width
Item #: 88477781
Brand: Tennsmith
Model #: SR42
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Machine Type | Bench |
| Power Type | Manual |
| Maximum Forming Width (mm) | 1066.80 |
| Maximum Forming Width (Inch) | 42 |
| Maximum Mild Steel Capacity (mm) | 0.60 |
| Maximum Mild Steel Capacity (Gauge) | 24 |
| Maximum Stainless Steel Capacity (Gauge) | 28 |
| Slip Roll Diameter (mm) | 50.80 |
| Slip Roll Diameter (Inch) | 2 |
| Minimum Forming Radius (Inch) | 1 |
| Number of Wire Grooves | 3 |
| Wire Groove Width (mm) | 5.00; 6.50; 8.00 |
| Wire Groove Width (Inch) | 3/16; 1/4; 5/16 |
| Overall Width (mm) | 1447.80 |
| Overall Width (Inch) | 57 |
| Overall Height (mm) | 482.60 |
| Overall Height (Inch) | 19 |
