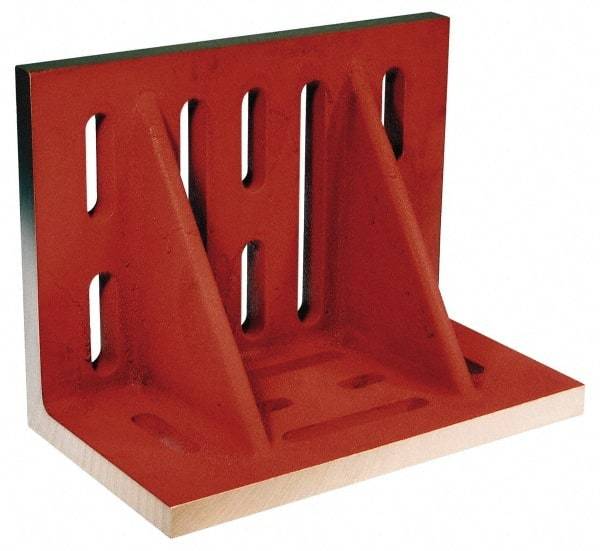

Suburban Tool - 18" Wide x 24" Deep x 30" High Cast Iron Machined Angle Plate - Slotted Plate, Through-Slots on Surface, Double Web, 1-3/4" Thick, Single Plate
Item #: 88474960
Brand: Suburban Tool
Model #: GAW183024
Exact Tooling IR#: 04
Features and Benefits
Cast iron, also called semi-steel, is extremely strong and ideal for high-heat applications.
Machined angle plates are used for general machine shop and set-up work.
Slotted angle plates are designed with clamping slots for mounting, layout and inspection operations. They can be used as backing plates and constructed with varying spacing between slots and holes.
| Product Specifications | |
|---|---|
| Width (Inch) | 18 |
| Depth (Inch) | 24 |
| Height (Inch) | 30 |
| Material | Cast Iron |
| Finish Type | Machined |
| Plate Surface | Through-Slots |
| Plate Style | Slotted |
| Plate Design | Double Web |
| Plate Thickness (Inch) | 1-3/4 |
| Web Thickness (Inch) | 1-3/8 |
| Parallelism (Decimal Inch) | 0.0020 per 6" |
| Squareness (Decimal Inch) | 0.0020 per 6" |
| Material Grade | Class 35-40 |
| Single or Pair | Single |
