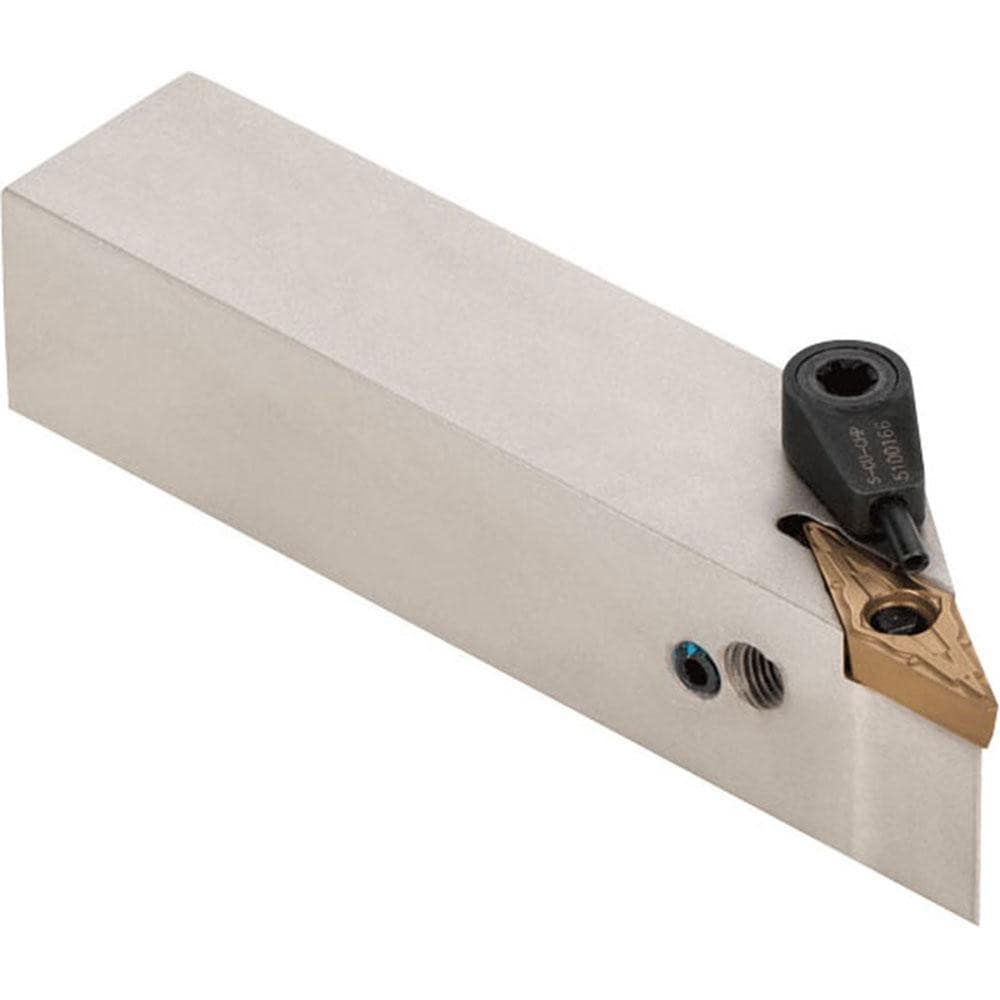

Indexable Turning Toolholder: PVACR1616X11S-CHP-MC, 91.000 deg Lead Angle, Lever
Item #: 62502018
Brand: Tungaloy
Model #: 3308036
Product Specifications
| Toolholder Style | PVAC |
| Hand of Holder | Right Hand |
| Lead Angle | 91.000 |
| Insert Compatibility | VC..22. |
| Insert Holding Method | Lever |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VC..22. |
| Multi-use Tool | Yes |
| Series | PVAC |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 26.00 |
| Back of Bar to Cutting Edge (mm) | 16.20 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Inch) | 1/4 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Toolholder Style | PVAC |
| Hand of Holder | Right Hand |
| Lead Angle | 91.000 |
| Insert Compatibility | VC..22. |
| Insert Holding Method | Lever |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VC..22. |
| Multi-use Tool | Yes |
| Series | PVAC |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 26.00 |
| Back of Bar to Cutting Edge (mm) | 16.20 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Inch) | 1/4 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| MSC Part # | 62502018 |
| Mfr Part # | 3308036 |
| Country of Origin Country of Origin is subject to change | Israel |
