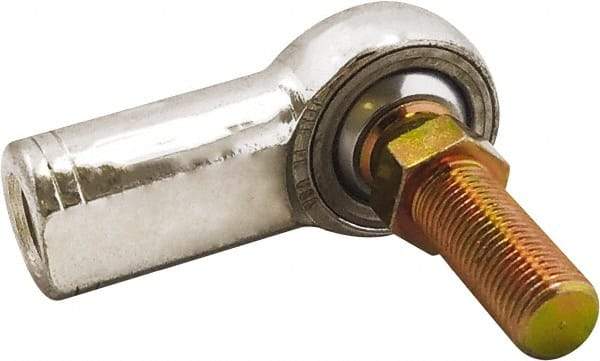

Made in USA - 7/16" ID, 1-1/8" Max OD, 10,290 Lb Max Static Cap, Female Spherical Rod End with Stud - 7/16-20 LH, 1-1/16" Shank Length, Alloy Steel with Steel Raceway
Item #: 88203013
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.4375 |
| Inside Diameter (Inch) | 7/16 |
| Style | Female Rod End w/ Stud |
| Maximum Outside Diameter (Decimal Inch) | 1.1250 |
| Maximum Outside Diameter (Inch) | 1-1/8 |
| Maximum Static Load Capacity (Pounds) | 10290.0 |
| Width (Inch) | 9/16 |
| Width (Decimal Inch) | 0.5625 |
| Thread Size | 7/16-20 |
| Material | Alloy Steel |
| Shank Diameter (Decimal Inch) | 0.0000 |
| Raceway Material | Steel |
| Shank Length (Decimal Inch) | 1.0620 |
| Thread Direction | Left Hand |
