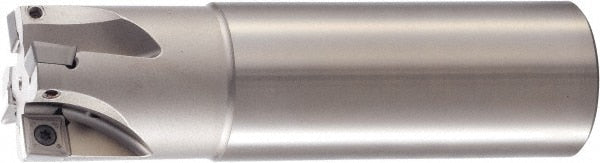

Indexable Square-Shoulder End Mill: PSF09R150FA125-5S, 1-1/2" Cut Dia, 2.098" Max Depth of Cut, 1-1/4" Dia Weldon Flat Shank
Item #: 55702740
Brand: OSG
Model #: 52900006
Product Specifications
| Cutting Diameter | 1.5000 in |
| Cutting Diameter | 1-1/2 |
| Overall Length (Decimal Inch) | 4.3780 |
| Maximum Depth of Cut (Decimal Inch) | 2.0980 |
| Cutter Style | PSF |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52900 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 4.378 |
| Insert Compatibility | SD_T09? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| Cutting Diameter | 1.5000 in |
| Cutting Diameter | 1-1/2 |
| Overall Length (Decimal Inch) | 4.3780 |
| Maximum Depth of Cut (Decimal Inch) | 2.0980 |
| Cutter Style | PSF |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52900 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 4.378 |
| Insert Compatibility | SD_T09? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| MSC Part # | 55702740 |
| Mfr Part # | 52900006 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
