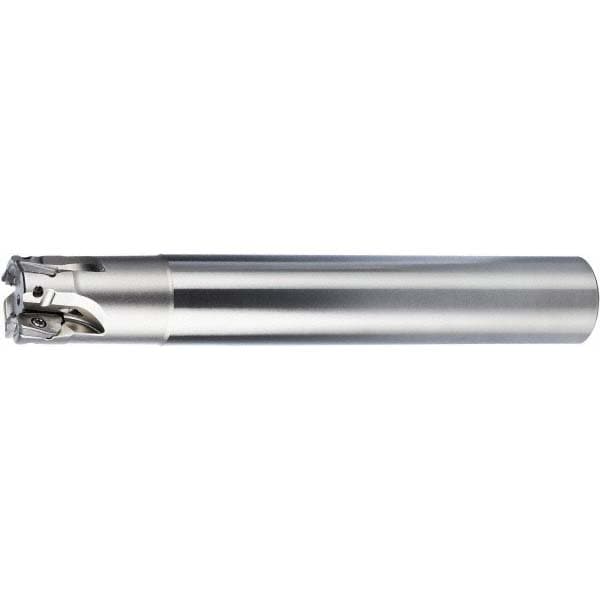

Indexable Square-Shoulder End Mill: PSE11R063SA063-2L, 5/8" Cut Dia, 1.969" Max Depth of Cut, 5/8" Dia Cylindrical Shank
Item #: 55702369
Brand: OSG
Model #: 7801336
Product Specifications
| Cutting Diameter | 0.6250 in |
| Cutting Diameter | 5/8 |
| Overall Length (Decimal Inch) | 5.9060 |
| Maximum Depth of Cut (Decimal Inch) | 1.9690 |
| Cutter Style | PSE |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78013 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 5.906 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Cutting Diameter | 0.6250 in |
| Cutting Diameter | 5/8 |
| Overall Length (Decimal Inch) | 5.9060 |
| Maximum Depth of Cut (Decimal Inch) | 1.9690 |
| Cutter Style | PSE |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78013 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 5.906 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| MSC Part # | 55702369 |
| Mfr Part # | 7801336 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
