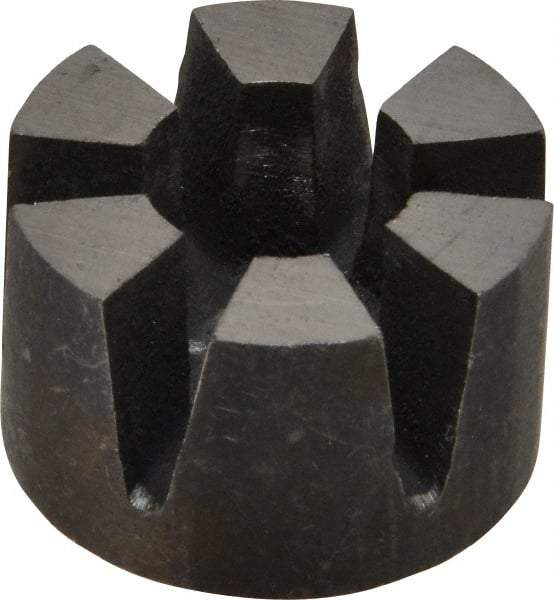

Eclipse - 3/4" OD x 1-1/4" High, 6 Pole Alnico Rotor Magnet - 1/4" Hole Diam, 25 Lb Max Holding Capacity, 1,022°F Max Operating Temp
Item #: 87954293
Brand: Eclipse
Model #: M16555/MSC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (mm) | 19.05 |
| Outside Diameter (Inch) | 3/4 |
| Outside Diameter (Decimal Inch) | 0.7500 |
| Height (Decimal Inch) | 1.2500 |
| Height (mm) | 31.75 |
| Height (Inch) | 1-1/4 |
| Number of Poles | 6 |
| Hole Diameter (Inch) | 1/4 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 6.35 |
| Maximum Pull Force (Lb.) | 25.00 |
| Magnet Material Grade | Alnico 5 |
| Finish/Coating | None |
| Maximum Operating Temperature (F) | 1022.00 |
| Maximum Operating Temperature (C) | 550.00 |
| Includes | Magnet Keeper |
