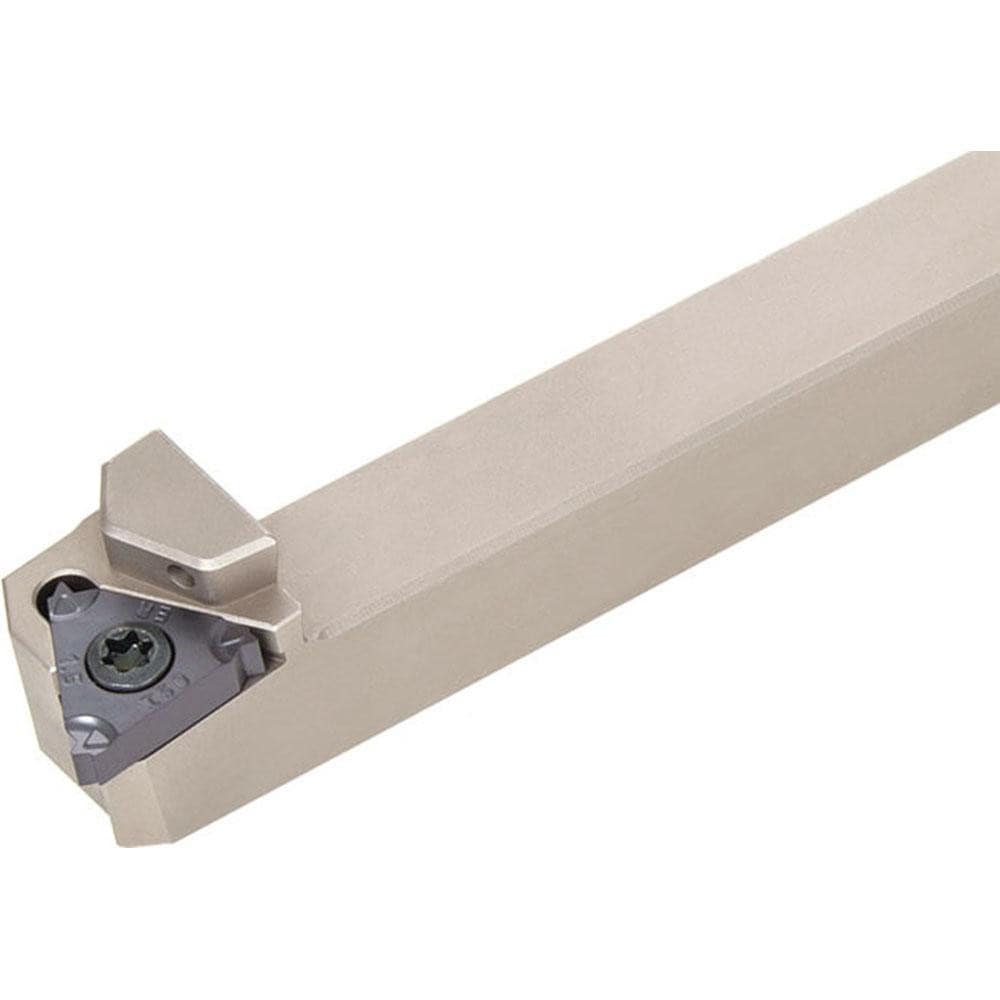

Indexable Threading Toolholder: External, Right Hand, Uses 16 Inserts, 5/8 x 5/8" Shank
Item #: 61180709
Brand: Tungaloy
Model #: 6776513
Product Specifications
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Compatible Insert Size Code | 16 |
| Shank Width/Diameter (Inch) | 5/8 |
| Toolholder Style | JSE2R |
| Coolant Entry Style Code | 3 - Axial Concentric & Radial |
| Insert Holding Method | Screw |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Length (Inch) | 4-3/4 |
| Shank Length (Decimal Inch) | 4.7500 |
| Overall Length (Inch) | 4-3/4 |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (Decimal Inch) | 0.7480 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23291800 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Series | JSE2R |
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Compatible Insert Size Code | 16 |
| Shank Width/Diameter (Inch) | 5/8 |
| Toolholder Style | JSE2R |
| Coolant Entry Style Code | 3 - Axial Concentric & Radial |
| Insert Holding Method | Screw |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Length (Inch) | 4-3/4 |
| Shank Length (Decimal Inch) | 4.7500 |
| Overall Length (Inch) | 4-3/4 |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (Decimal Inch) | 0.7480 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23291800 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Series | JSE2R |
| MSC Part # | 61180709 |
| Mfr Part # | 6776513 |
| Country of Origin Country of Origin is subject to change | Japan |
