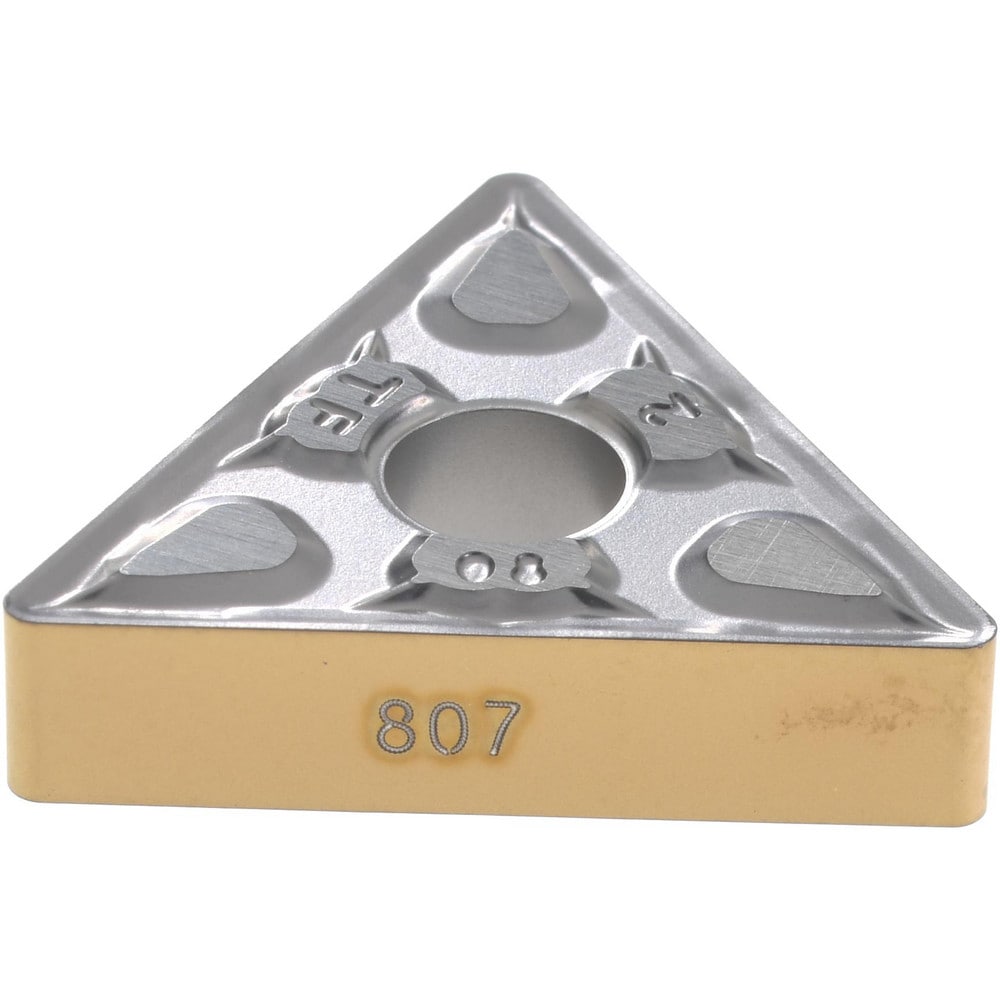

Turning Insert: tnmg432tf ic807, Carbide
Item #: 59412494
Brand: Iscar
Model #: 5550471
Product Specifications
| ANSI Insert Code | TNMG432 |
| ISO Insert Code | TNMG220408 |
| Insert Style | TNMG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | IC807 |
| Coating/Finish | TiN; TiAlN |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | TF |
| ANSI Size Code | 432 |
| ISO Size Code | 220408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| ANSI Insert Code | TNMG432 |
| ISO Insert Code | TNMG220408 |
| Insert Style | TNMG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | IC807 |
| Coating/Finish | TiN; TiAlN |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | TF |
| ANSI Size Code | 432 |
| ISO Size Code | 220408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| MSC Part # | 59412494 |
| Mfr Part # | 5550471 |
| Country of Origin Country of Origin is subject to change | Israel |
