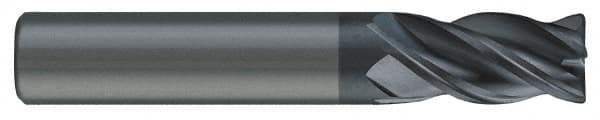

Square End Mill: 0.9843'' Dia, 1.4961'' LOC, 4 Flutes, Solid Carbide Single End, AlTiN Finish, Spiral Flute, Variable Helix, RH Cut, RH Flute, Series Z1M
Item #: 87901732
Brand: SGS
Model #: 46376
Product Specifications
| Mill Diameter (Decimal Inch) | 0.9843 |
| Mill Diameter (mm) | 25.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 38.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 25.00 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Overall Length (mm) | 104.00 |
| Length Of Cut Range (Decimal Inch) | 1.2500 - 1.5000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 1.4961 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | +0.000/-0.013 mm |
| Length Type | Regular |
| Mill Diameter Tolerance | +0.000/-0.050 mm |
| Series | Z1M |
