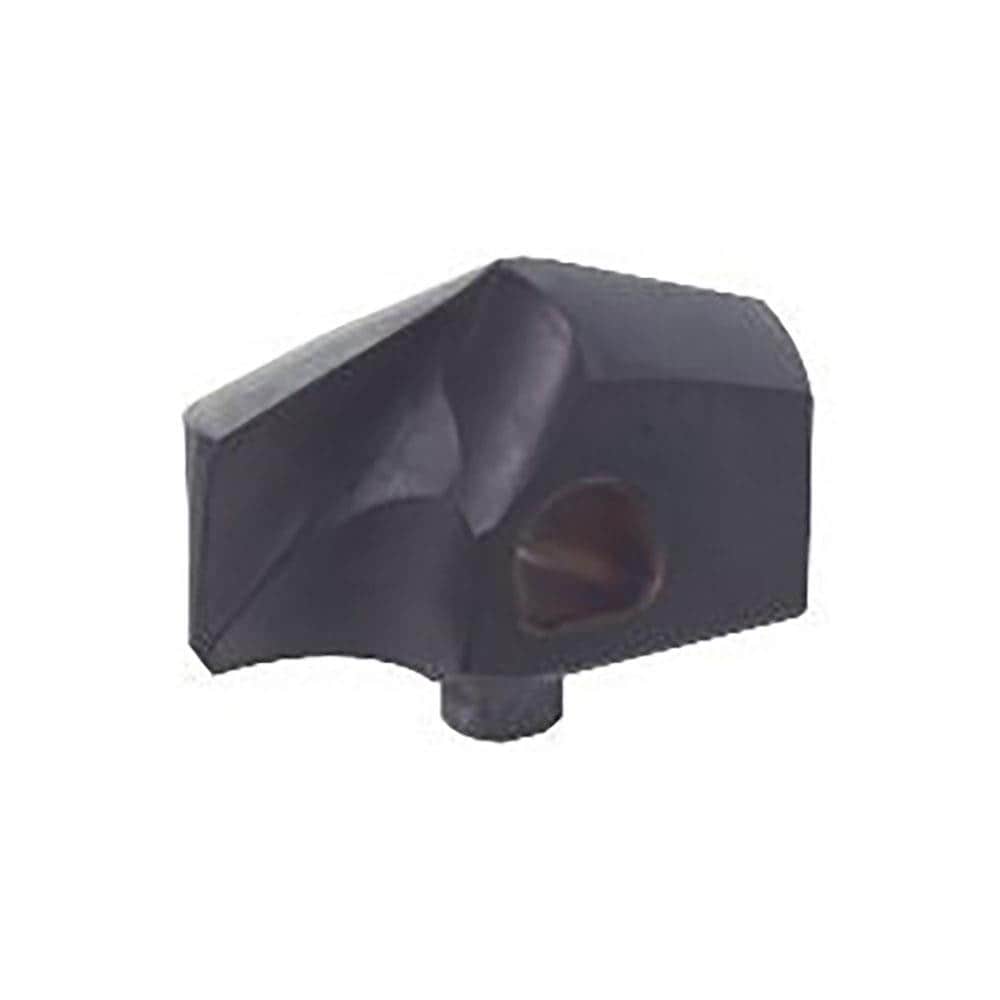

Replaceable Drill Tips: 4115 34.13MM, 1.3437" Dia, 34.13 mm Dia, 140 deg Point
Item #: 39296884
Brand: Guhring
Model #: 9041150341300
Product Specifications
| Cutting Diameter (Inch) | 1-11/32 |
| Cutting Diameter (Decimal Inch) | 1.3437 |
| Cutting Diameter (mm) | 34.13 |
| Tip Material | Solid Carbide |
| Series | 4115 |
| Insert Geometry | Relieved Cone |
| Functional Length (Decimal Inch) | 0.6619 |
| Functional Length (mm) | 23.10 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; K |
| Height (mm) | 23.00 |
| Overall Length/Projection (Decimal Inch) | 0.9101 |
| Web Thinning | Web-Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Screw; Clamp |
| Coolant Through | No |
| Flute Length (mm) | 17.00 |
| Point Type | Two Facet |
| Spiral Type | Regular Spiral |
| Style | 4115 |
| UNSPSC Code | 23242105 |
| Coating/Finish | nano-A |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
