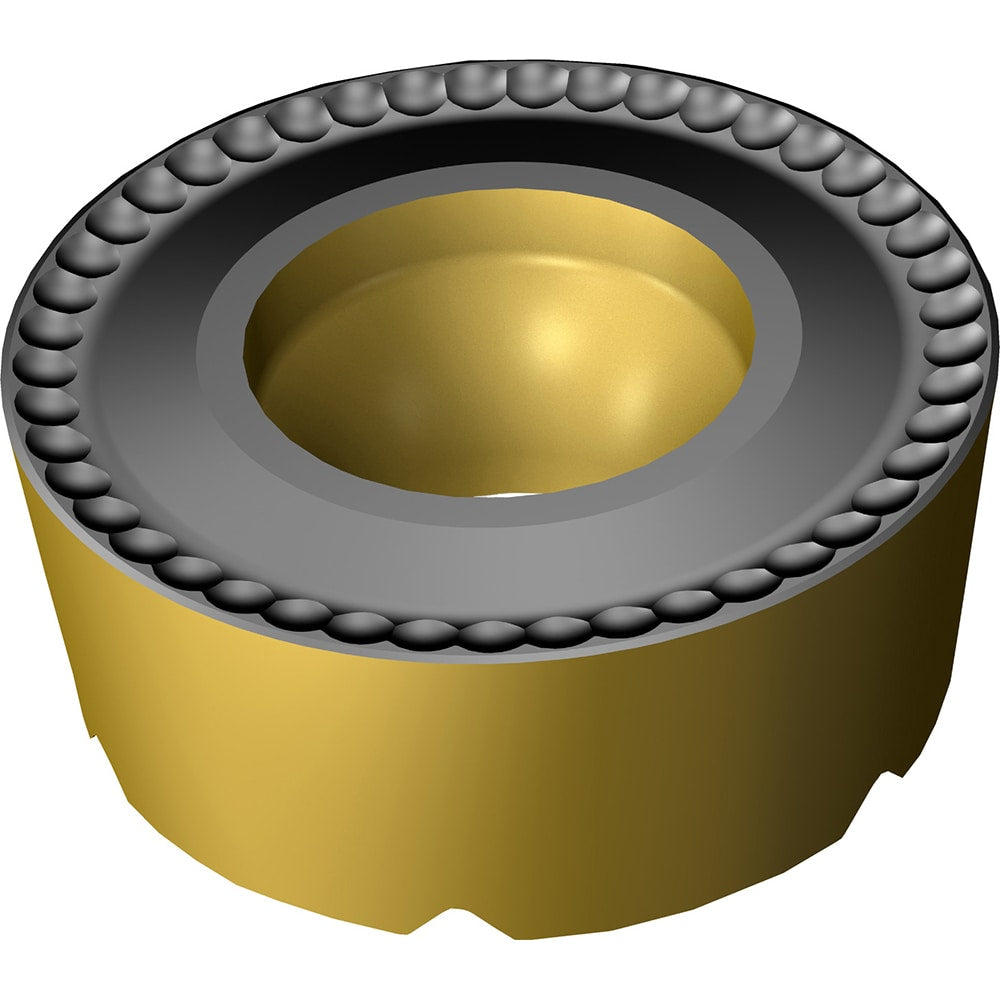

Turning Insert: RCMT 12 04 MP-H7 2220, Carbide
Item #: 13877220
Brand: Sandvik Coromant
Model #: 7960647
Product Specifications
| ANSI Insert Code | RCMT1204MP |
| ISO Insert Code | RCMT1204MP |
| Relief Angle | 7 |
| Insert Style | RCMT |
| Manufacturer Grade | 2220 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Series | CoroTurn 107 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Insert Shape Code | R |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material Code | M |
| Manufacturers Catalog Number | RCMT 12 04 MP-H7 2220 |
| Chip Breaker | H7 |
| ANSI Size Code | 1204MP |
| ISO Size Code | 1204MP |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1204 |
