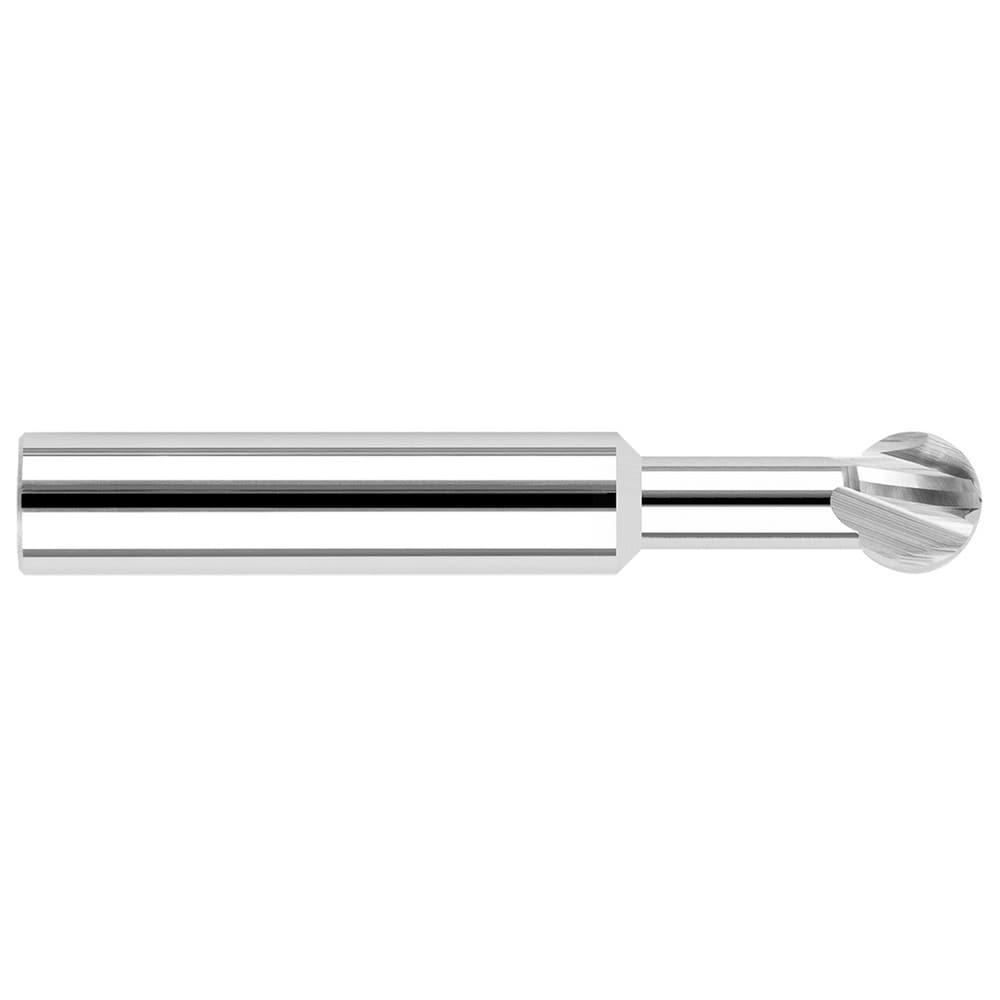

Undercutting End Mills; Mill Diameter (Decimal Inch): 0.1562; Mill Diameter (Inch): 5/32; Length Of Cut (Decimal Inch - 4 Decimals): 0.1330; Overall Length (Inch): 2; Radius: 0.0781; Number Of Flutes: 4; Neck Length (Decimal Inch): 0.1870; Neck Diameter (
Item #: 86859915
Brand: Harvey Tool
Model #: 974310
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1562 |
| Mill Diameter (Inch) | 5/32 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1330 |
| Overall Length (Inch) | 2 |
| Radius | 0.0781 |
| Number Of Flutes | 4 |
| Neck Length (Decimal Inch) | 0.1870 |
| Neck Diameter (Decimal Inch) | 0.0980 |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| End Mill Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1875 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
