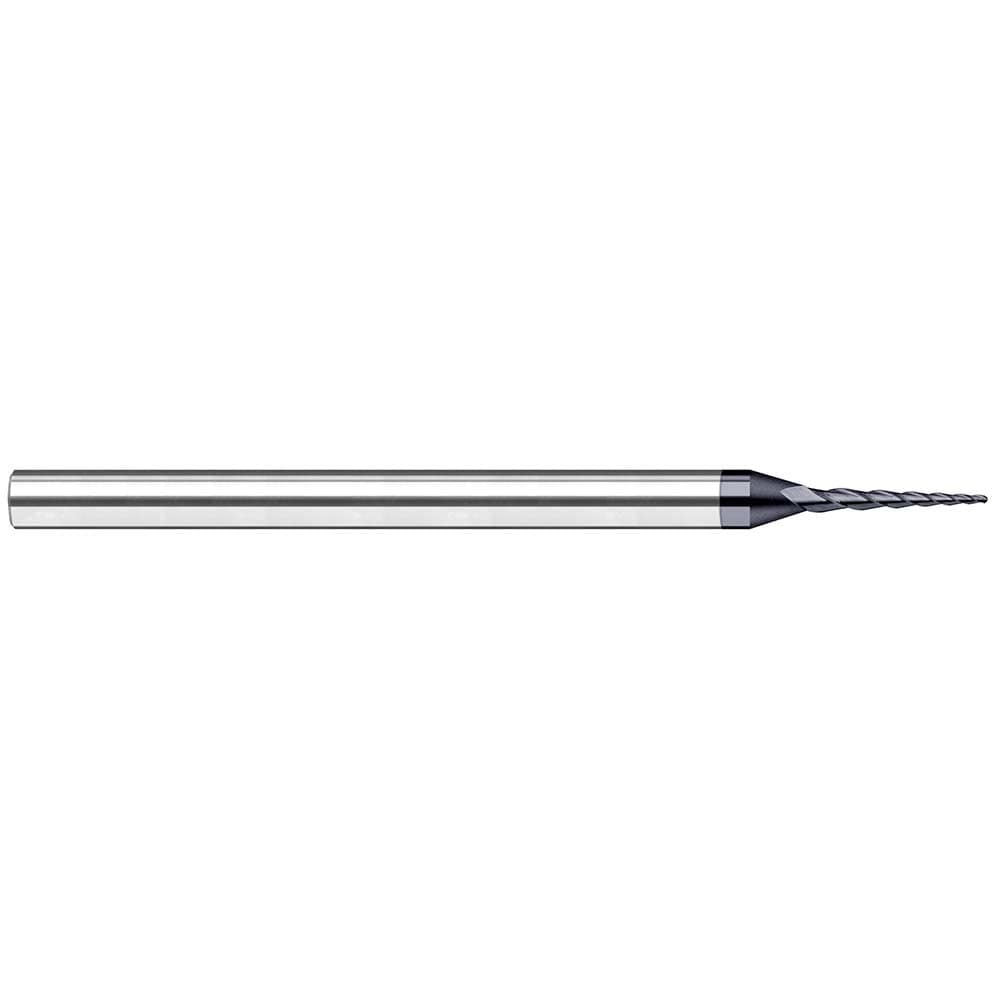

Tapered End Mill: 5 deg Angle per Side, 0.0600" Small Dia, 0.4800" LOC, 3 Flute, Tapered End
Item #: 86859980
Brand: Harvey Tool
Model #: 761960-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0600 |
| Taper Angle Per Side | 5.00 |
| End Mill Material | Solid Carbide |
| End Shape | Tapered |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Shank Diameter (Inch) | 3/16 |
| Nose Radius (Decimal Inch) | 0.0600 |
| Small End Diameter (Decimal Inch) | 0.0600 |
| Helix Angle | 30 |
| Series | Miniature End Mills - Tapered - Ball |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4800 |
| Coolant Through | No |
| Coating/Finish | AlTiN Nano |
| Number Of Flutes | 3 |
| Included Angle Degree | 10 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
