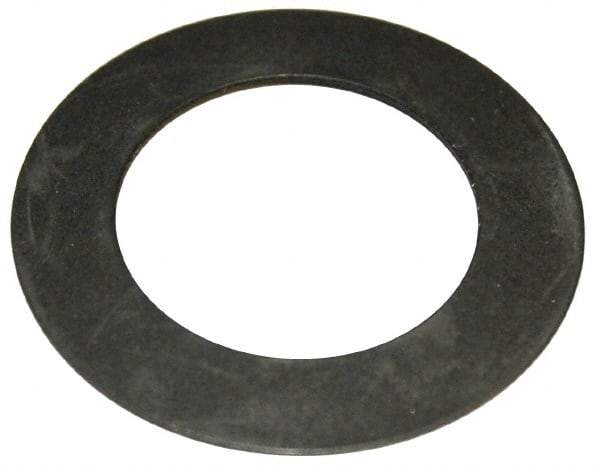

Gardner Spring - 1.988" ID, Grade 1074 Steel, Belleville Disc Spring for Ball Bearing - 2.657" OD, 0.067" High, 0.028" Thick
Item #: 87780771
Brand: Gardner Spring
Model #: BB-27
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs for ball bearings are used in preloading applications to ensure proper positioning and fit of bearings.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring for Ball Bearings |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 1.9880 |
| Inside Diameter (mm) | 50.50 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 2.6570 |
| Outside Diameter (mm) | 67.49 |
| Thickness (mm) | 0.71 |
| Thickness (Decimal Inch) | 0.0280 |
| Overall Height (mm) | 1.70 |
| Overall Height (Decimal Inch) | 0.0670 |
| Deflection (Decimal Inch) | 0.0300 |
| Deflection (mm) | 0.76 |
| Load at Deflection (Lb.) | 36.19 |
| Load at Deflection (N) | 161.00 |
| Ball Bearing Number | 6008 |
